Bait making equipment

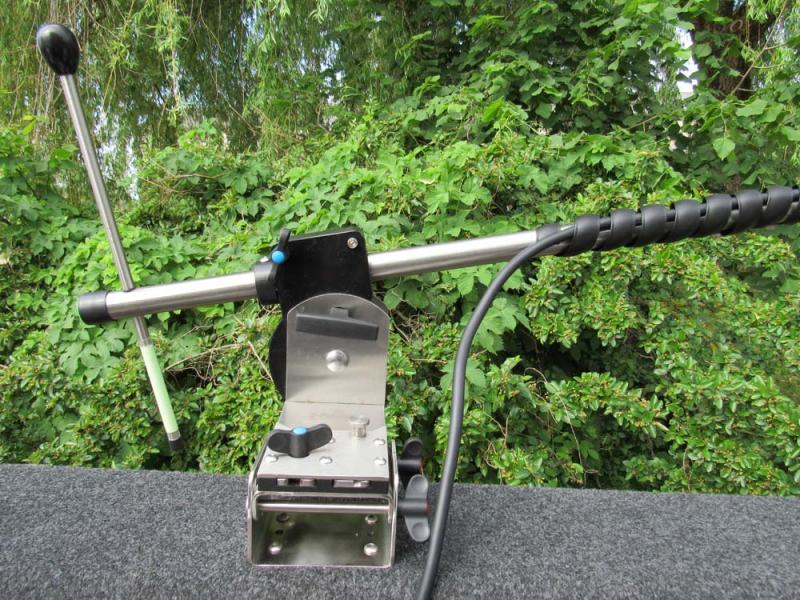

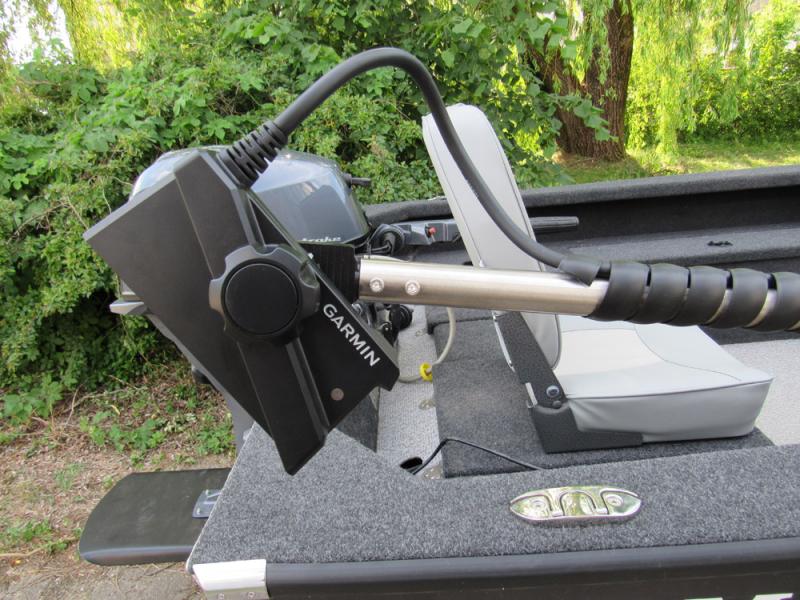

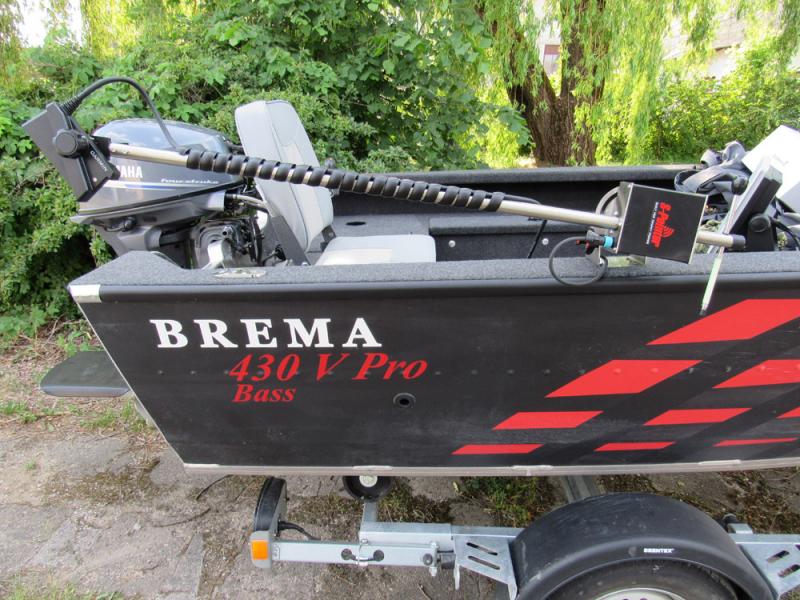

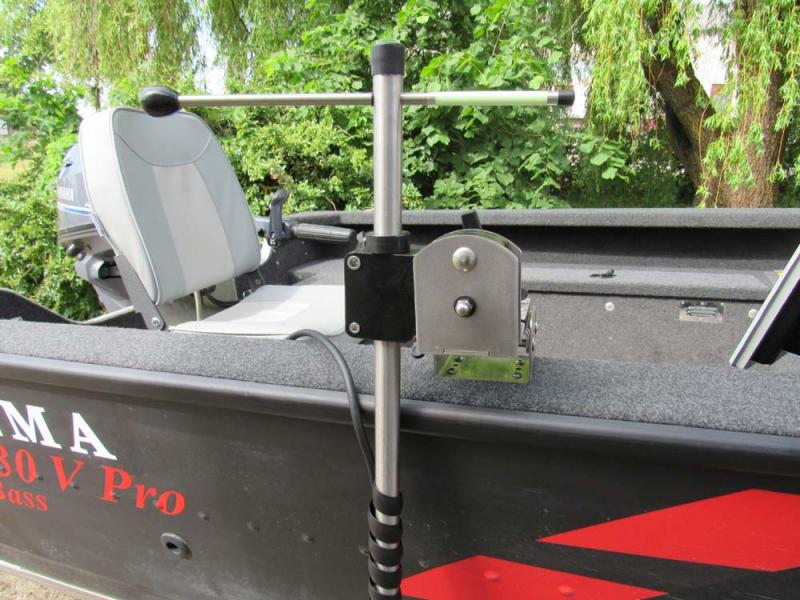

Manual live sonar mount
Manual live sonar mount
Manual live sonar mountManual live sonar mountManual live sonar mountManual live sonar mountManual live sonar mount

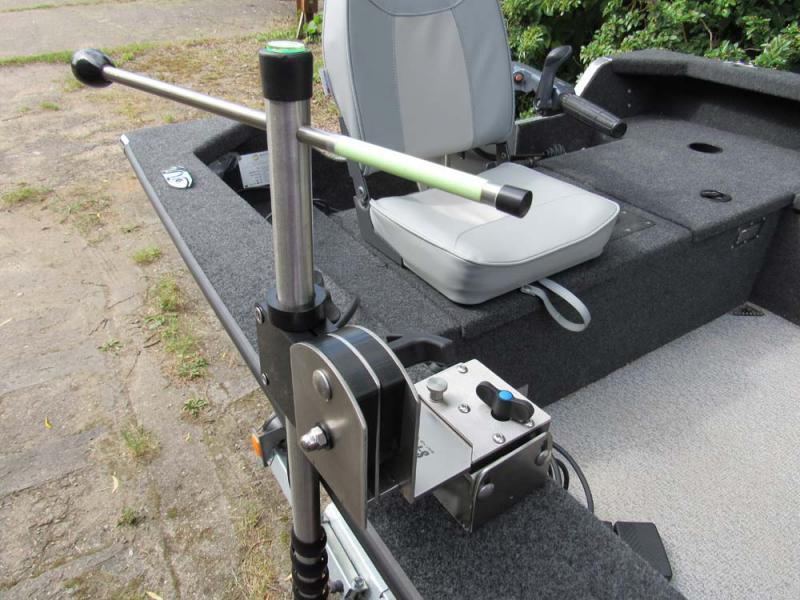

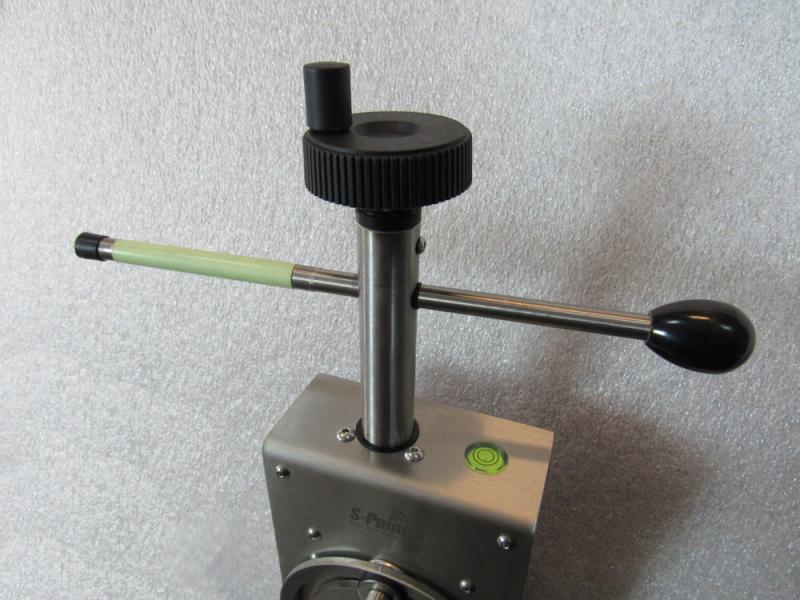

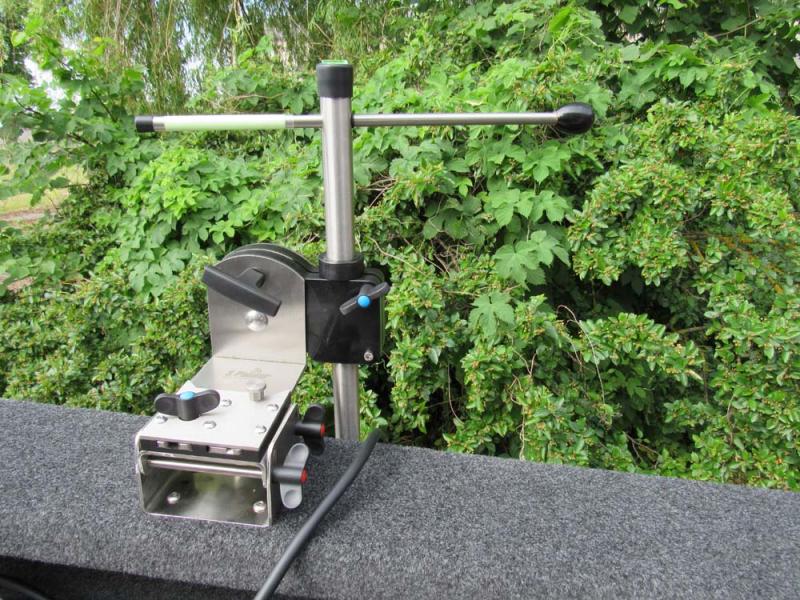

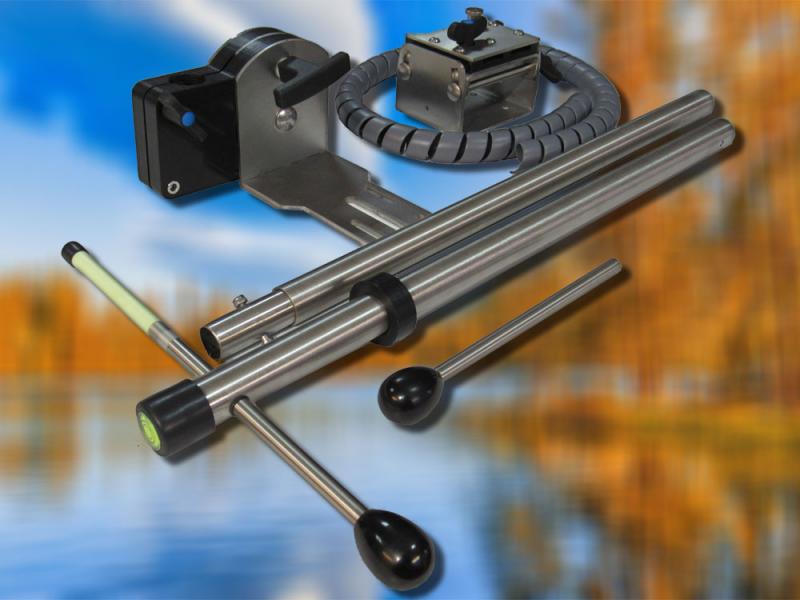

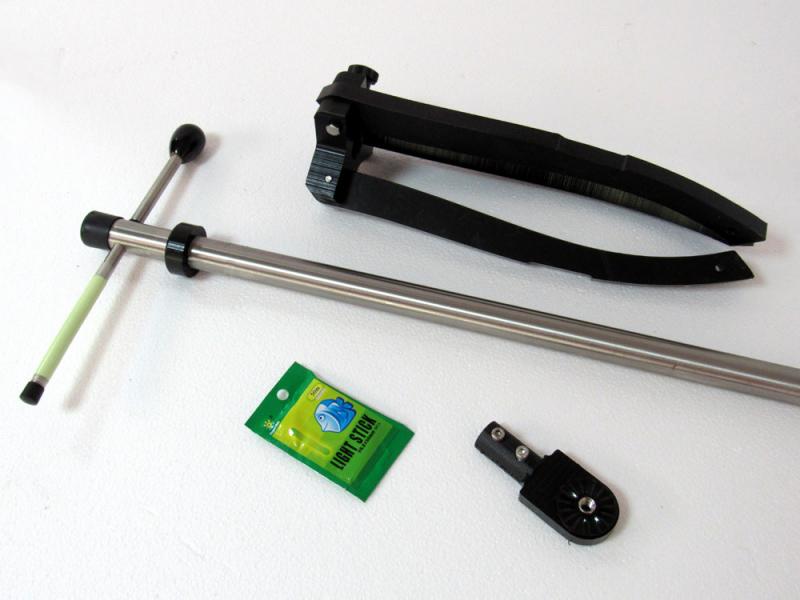

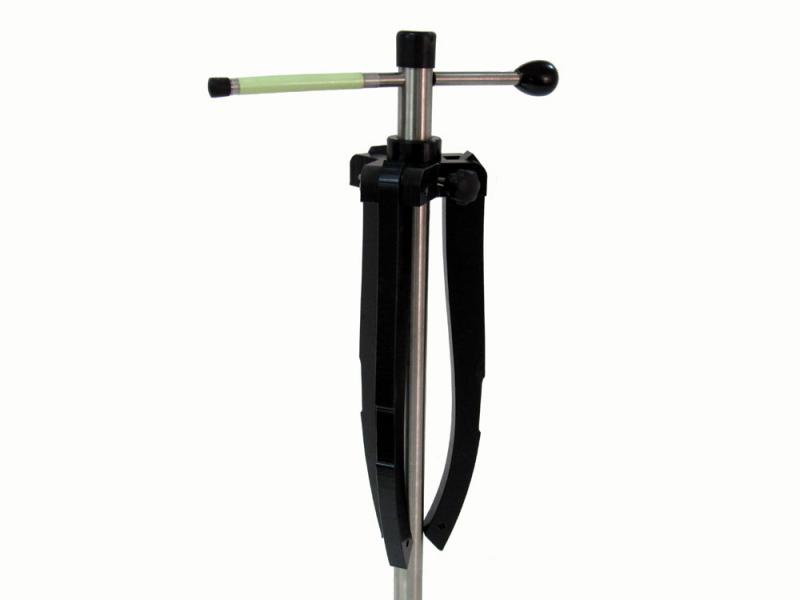

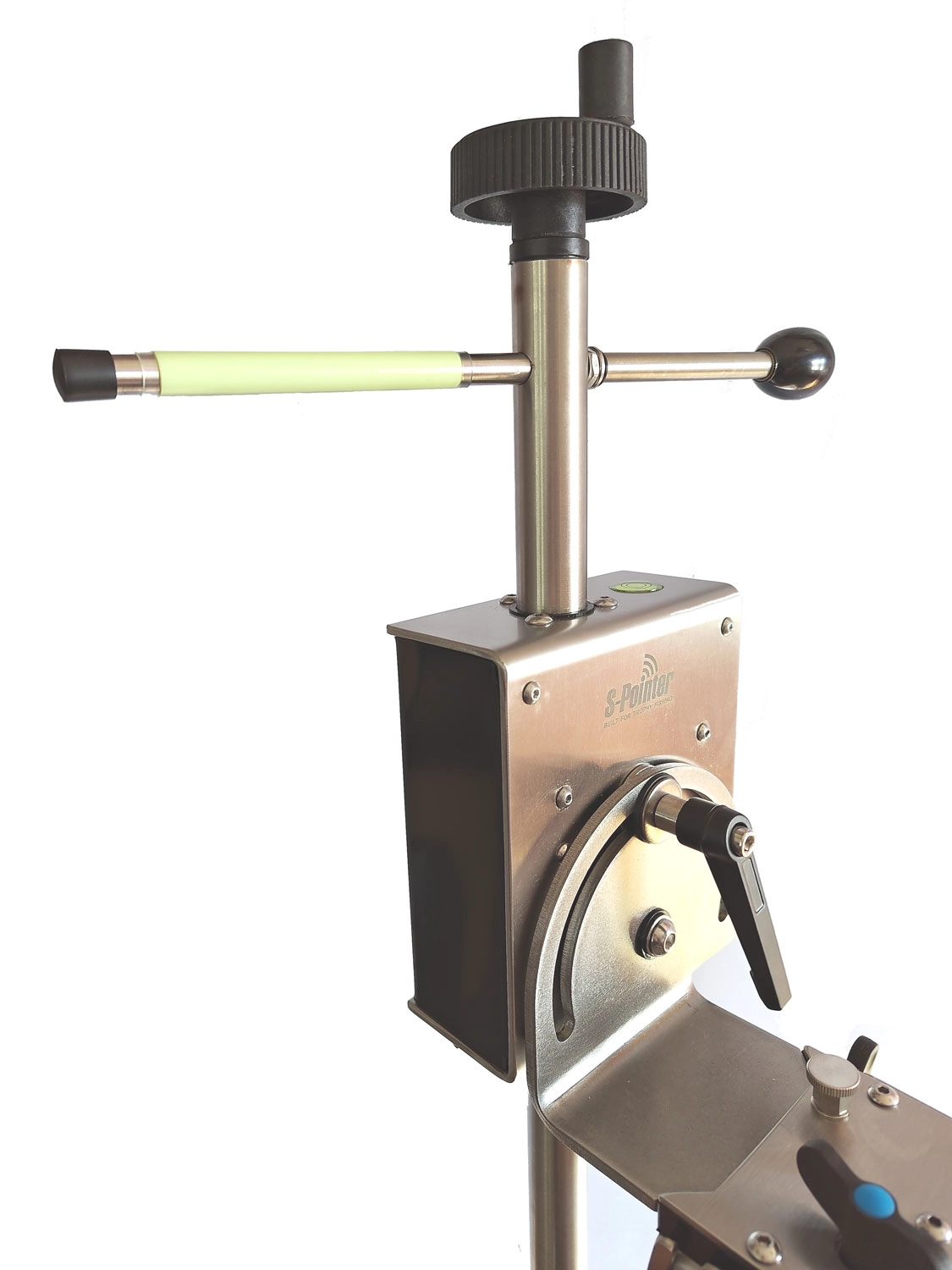

Manual S-Pointer set includes:
*  Tilt compensator
*  Manual rotator with Ø25mm pole
*  0° (zero degree) transducer mount if you will choose Garmin or Lowrance transducer
*  Transducer wire protection

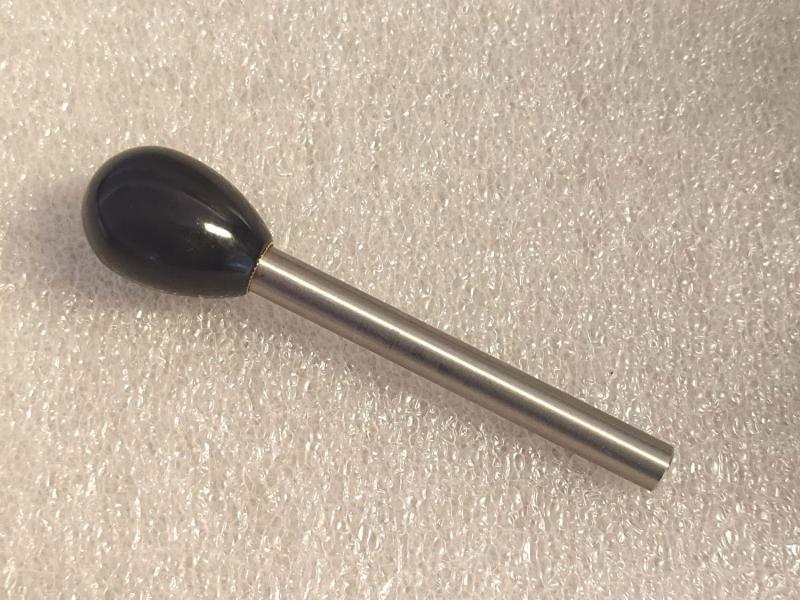

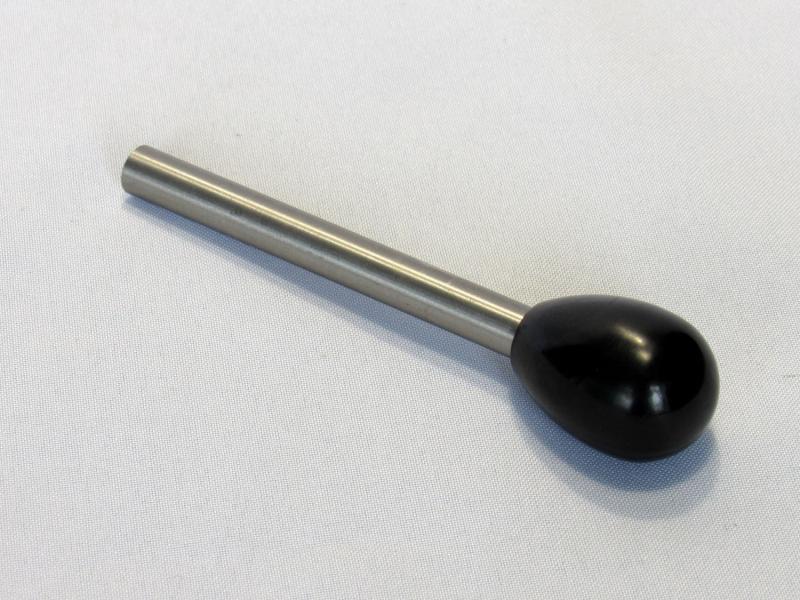

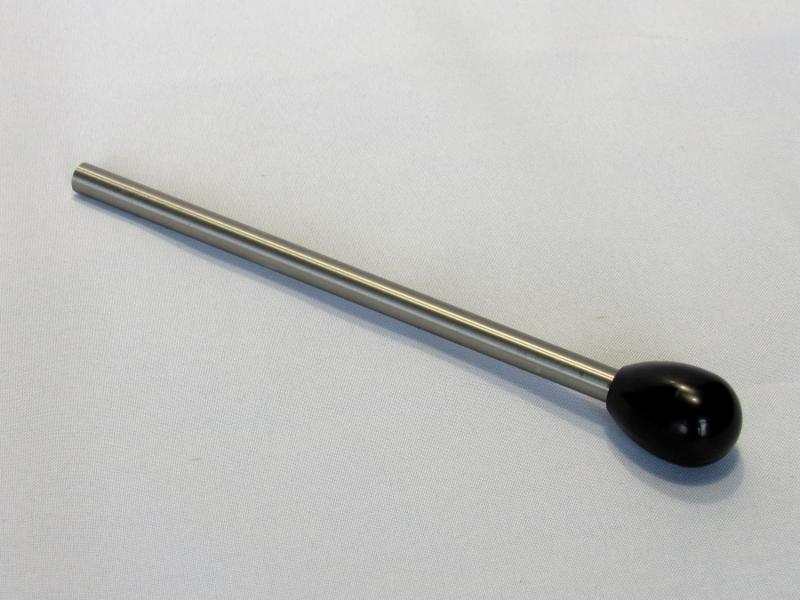

*  Two length handles

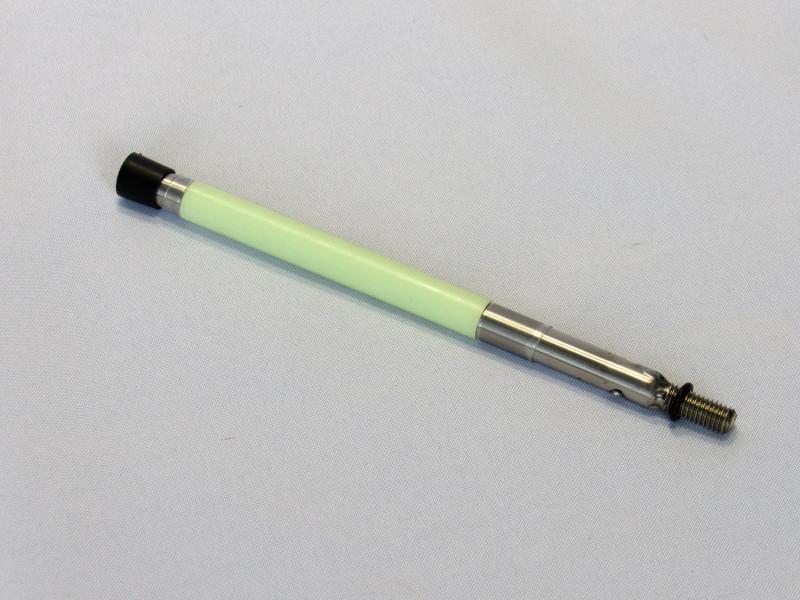

*  One set light sticks for night fishing
Supported Live Sonar Systems:
*  Garmin Panoptix LiveScope LVS32 / LVS34
*  Lowrance ActiveTarget / ActiveTarget 2
*  Humminbird Mega Live - use own original sonar mount

Regardless of Live Sonar system you are using, there are two ways of searching for fish:
*  The Forward view mode
*  The Downward view mode

Made from stainless steel and plastic. Weight of rotator 2,5kg + tilt compensator 1kg.

Pole's length from the top of the boat side downward is ~0,9m. If you need a longer pole you can order an 0,3m or 0,6m extension.

Video - how it works

Price without VAT and discount 250 €

Plus delivery!

Terms and Conditions


Price: 350 €300
Options:

Add to cart

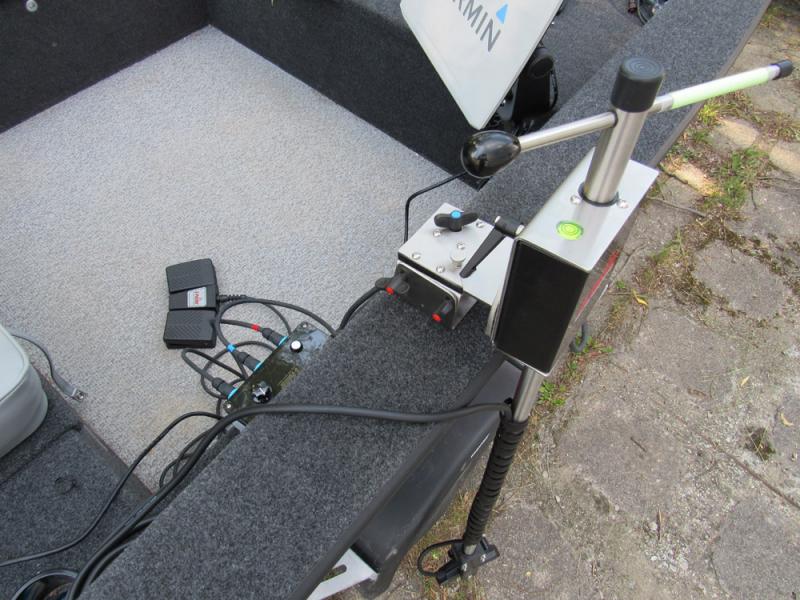

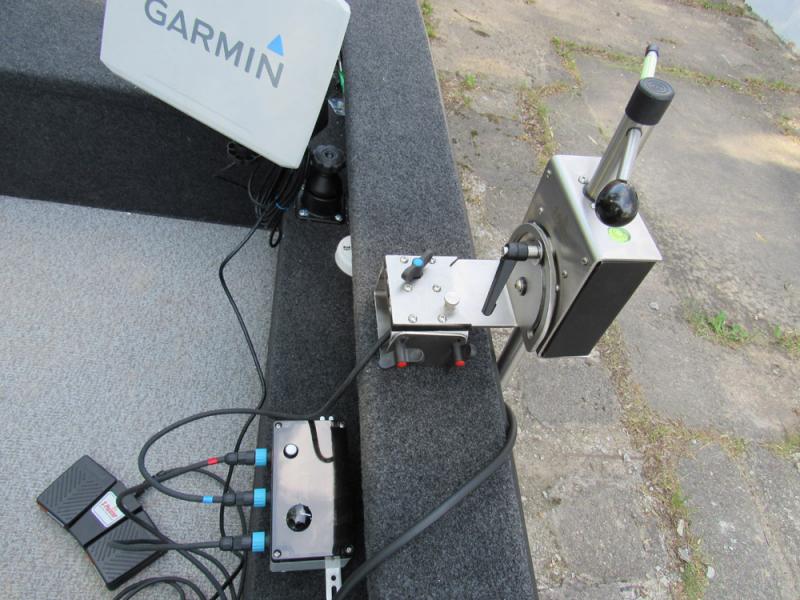

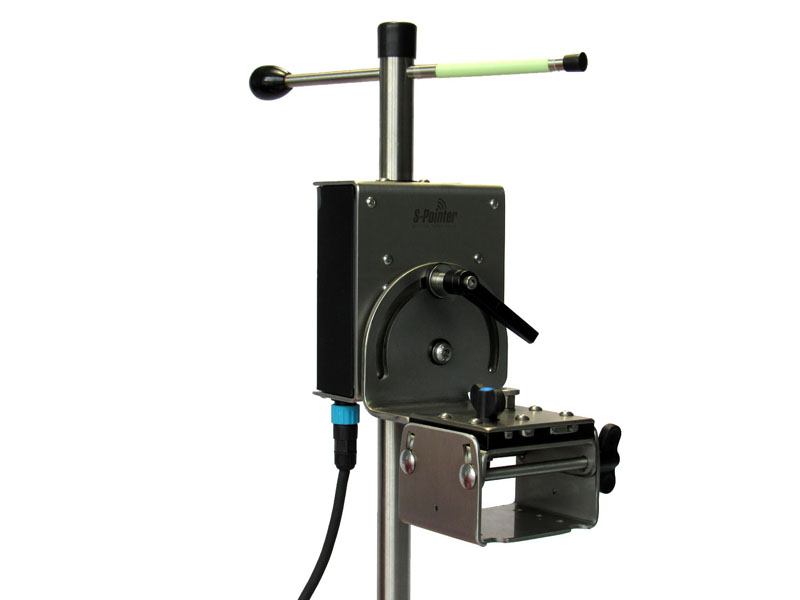

Motorized - manual live sonar mount
Motorized - manual live sonar mount
Motorized - manual live sonar mountMotorized - manual live sonar mountMotorized - manual live sonar mountMotorized - manual live sonar mountMotorized - manual live sonar mount
All sold out at the moment. Sorry. We working hard to produce more. You can order them now and will get when they will be made.

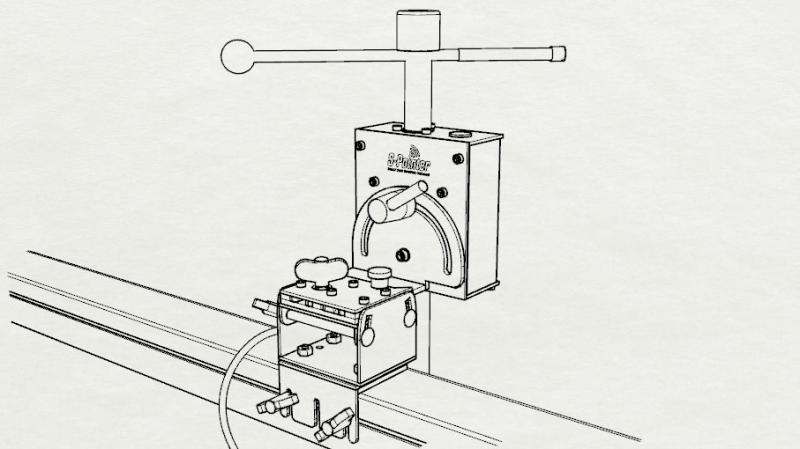

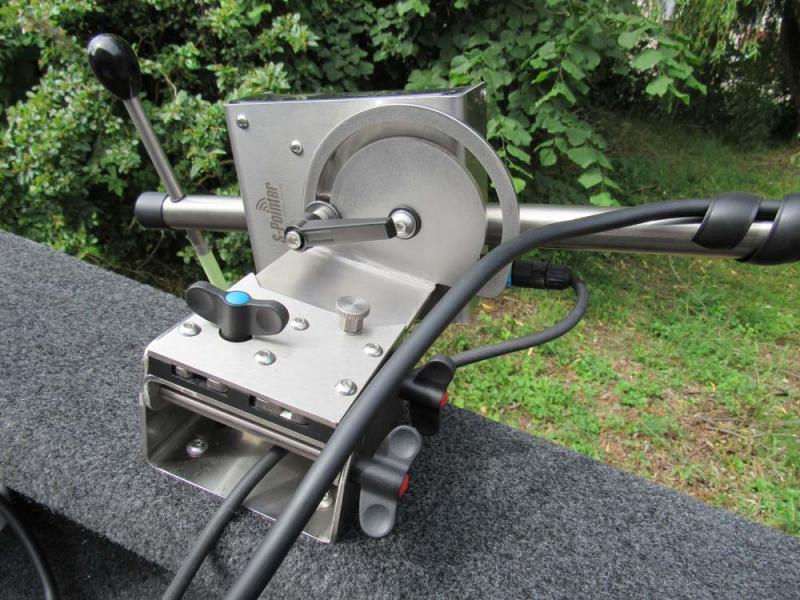

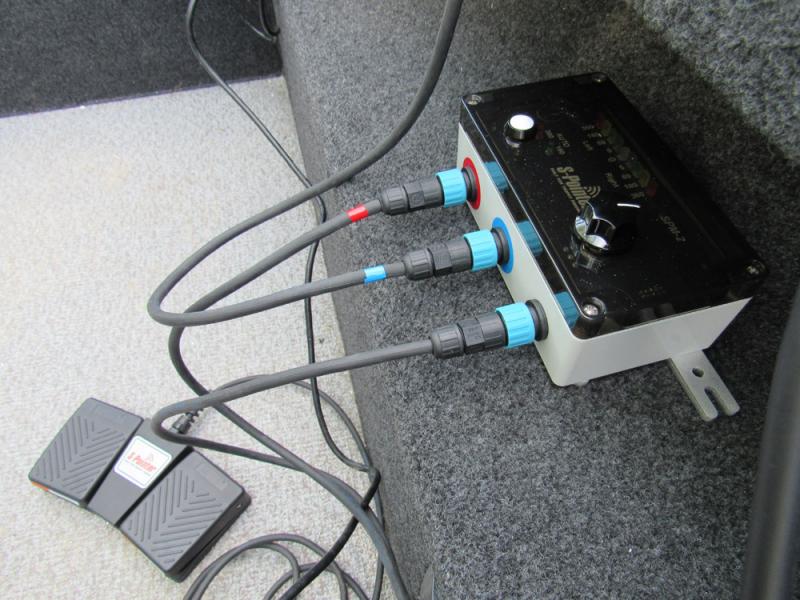

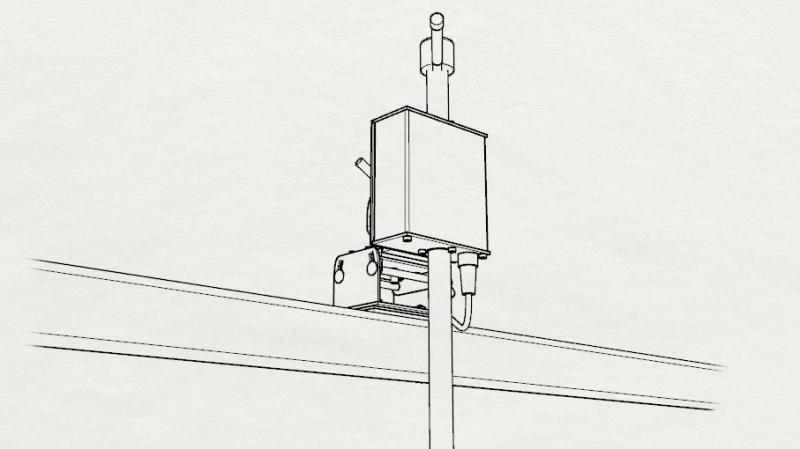

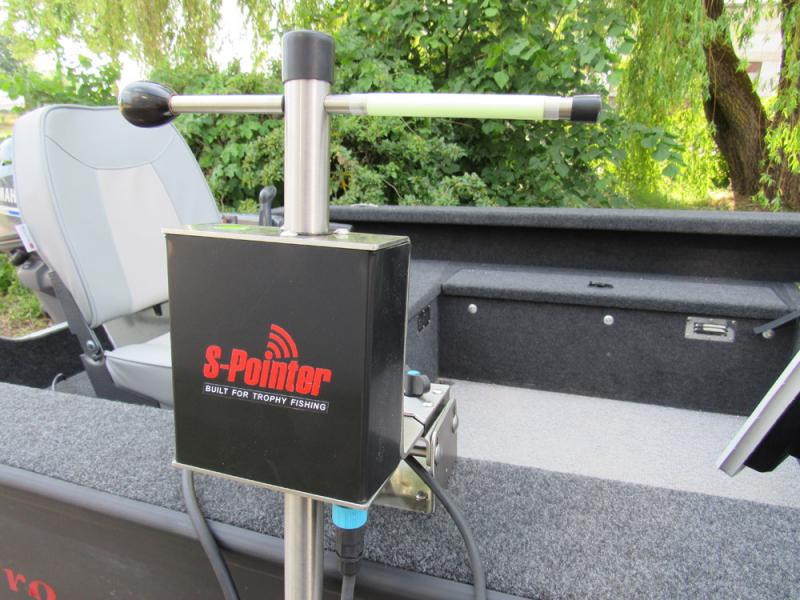

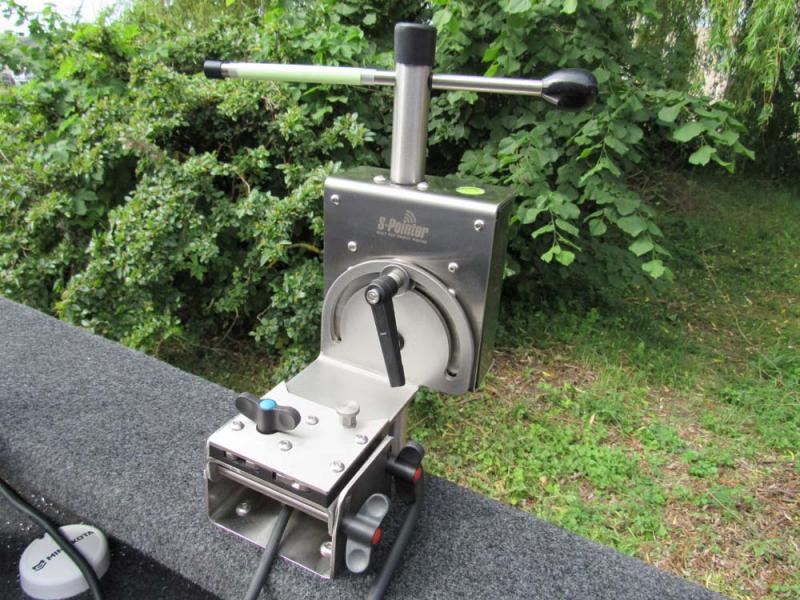

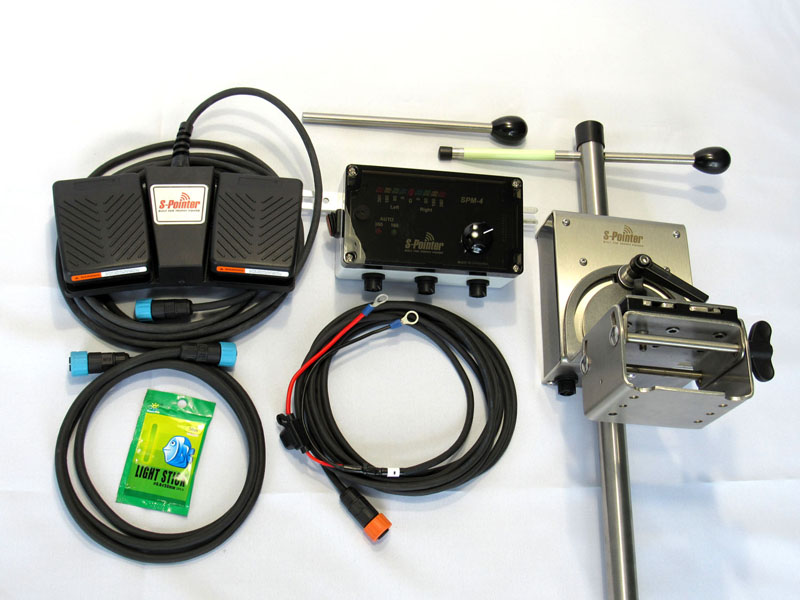

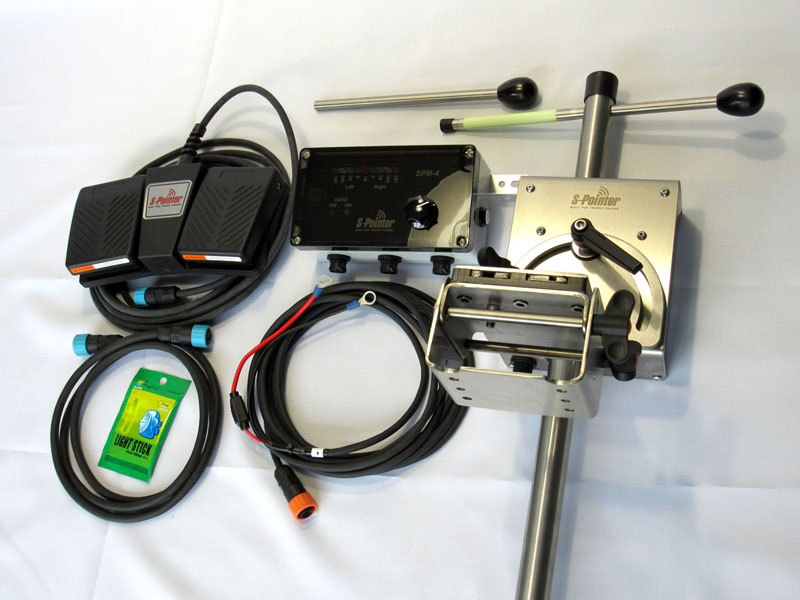

Motorized "S-Pointer" set includes:
*  Tilt compensator
*  Motorized rotator with Ø25mm pole

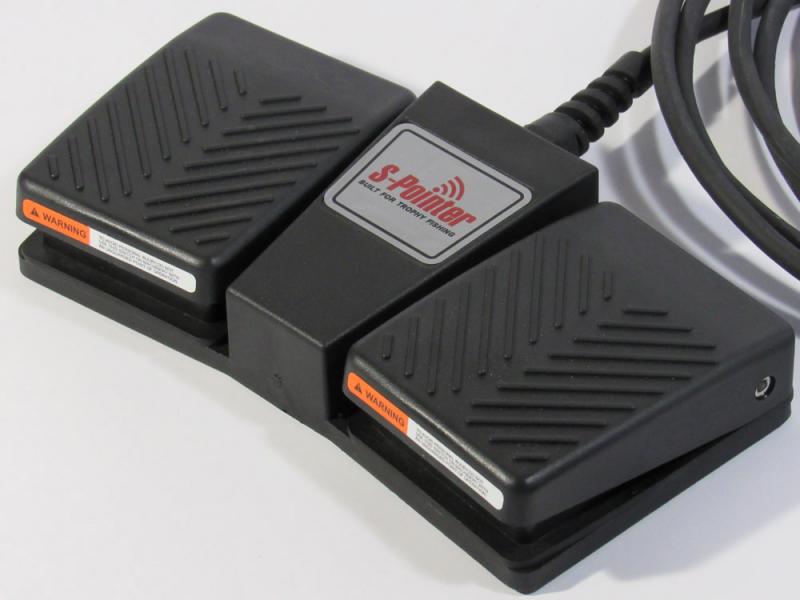

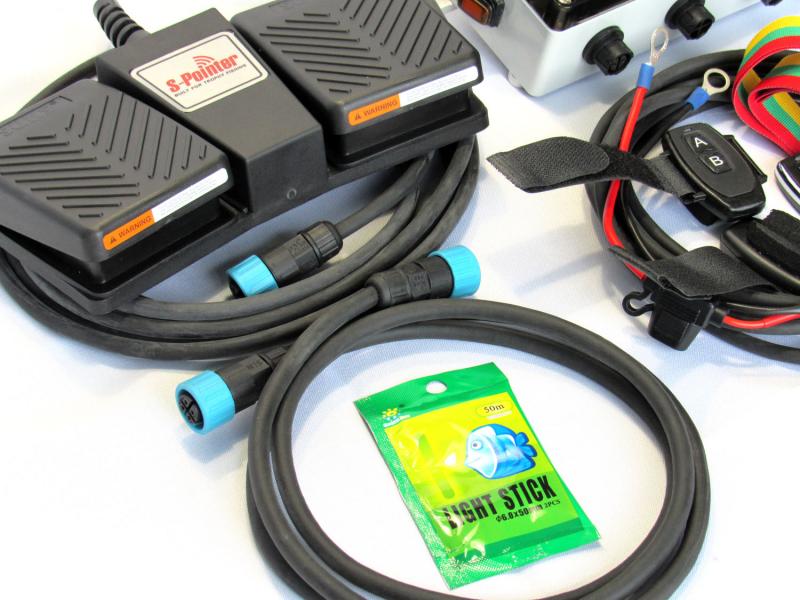

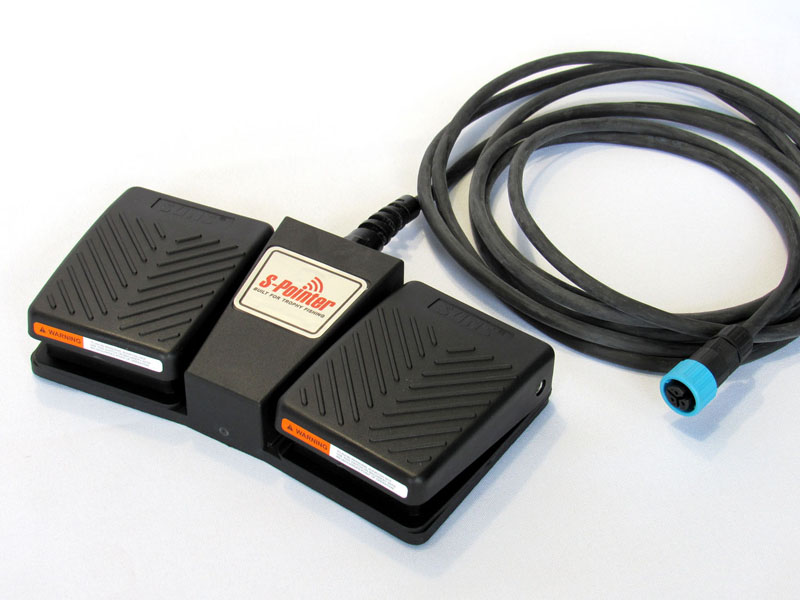

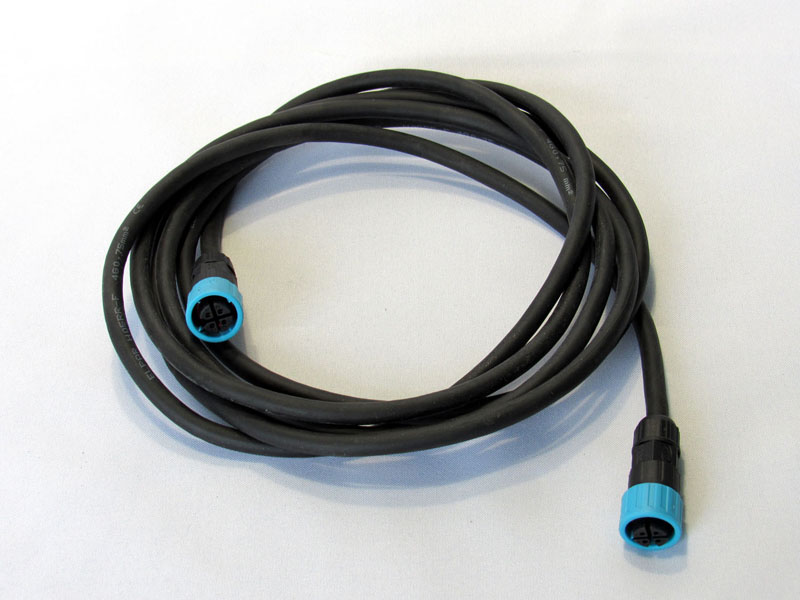

*  Foot pedal with wire

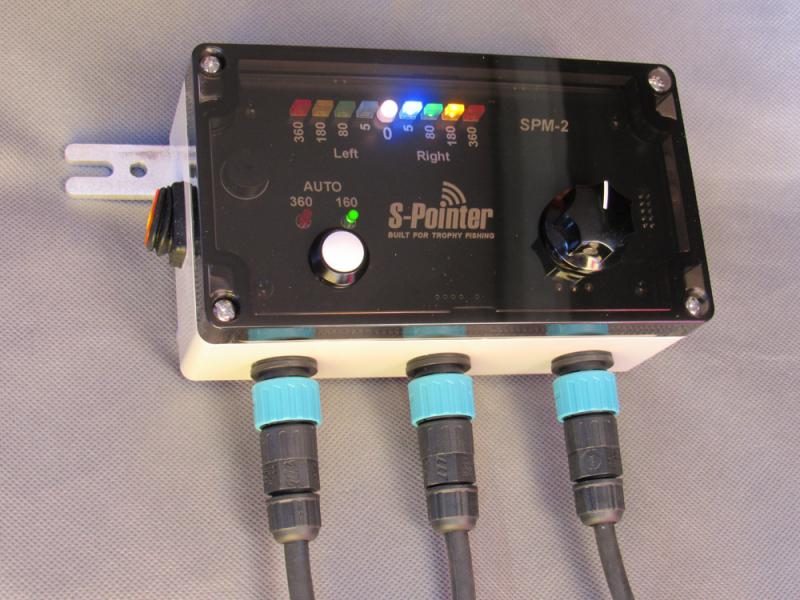

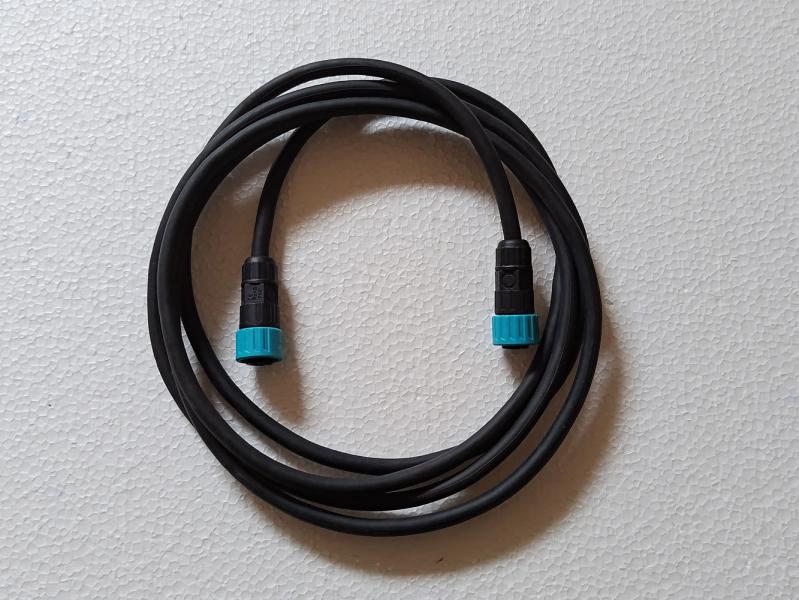

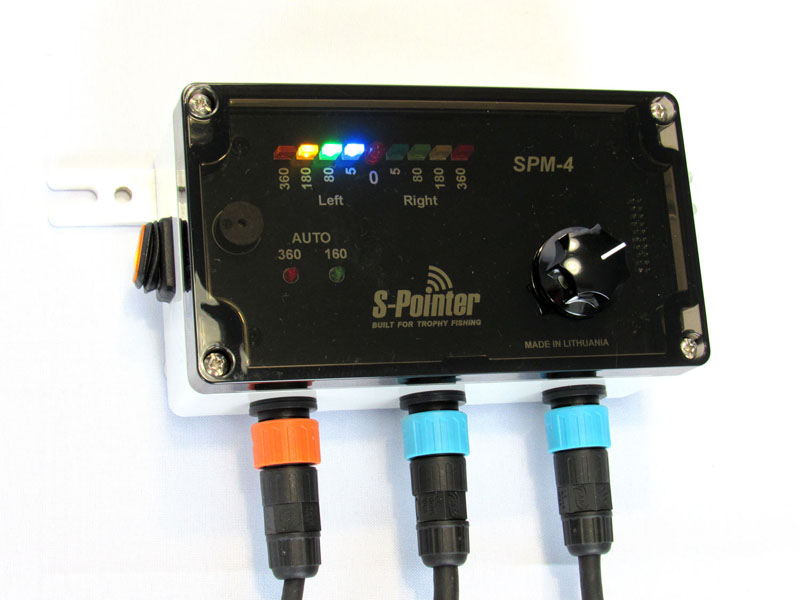

*  Control block with wires
*  0° (zero degree) transducer mount if you will choose Garmin or Lowrance transducer
*  Transducer wire protection

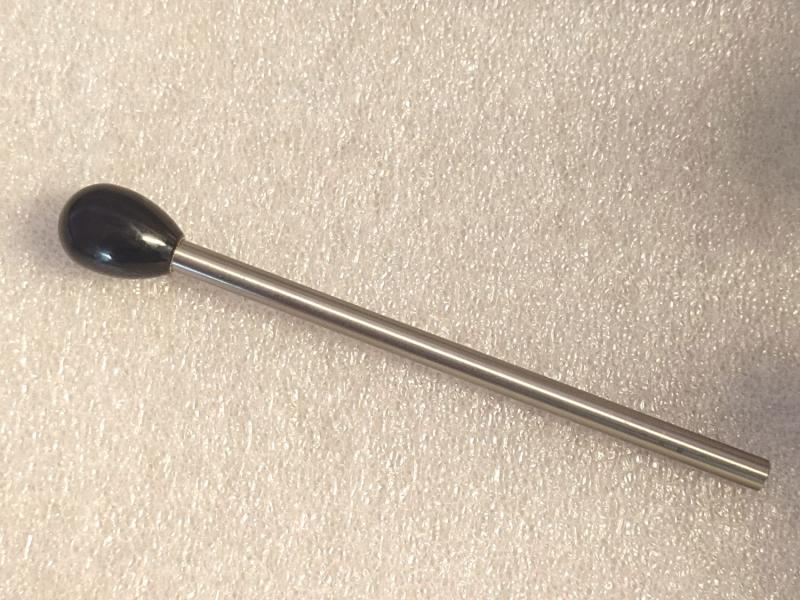

*  Two length handles
*  One set light sticks for night fishing

Supported Live Sonar Systems:
*  Garmin Panoptix LiveScope LVS32 / LVS34
*  Lowrance ActiveTarget / ActiveTarget 2
*  Humminbird Mega Live - use own original sonar mount

Regardless of Live Sonar system you are using, there are two ways of searching for fish:
*  The Downward view mode
*  The Forward view mode

Motorized "S-Pointer" benefits and features:
*  Has automated search (Autoscan) function. Search amplitude 160° or 360°. To switch it ON need to press both pedals
*  Has rotation speed control

*  Can be used like motorized or manual rotator when power is OFF

Made from stainless steel and plastic. Use DC12V (0,9-1,3A) power. Rotator head dimensions 130x60x150mm and weight is ~3 kg.

Pole's length from the top of the boat side downward is ~0,9m. If you need a longer pole you can order an 0,3m or 0,6m extension.

Video - how it works. Video lietuviškai. Видео по русски.

Price without VAT and discount 900 €

Plus delivery!

Terms and Conditions


Price: 1080 €
Options:

Add to cart

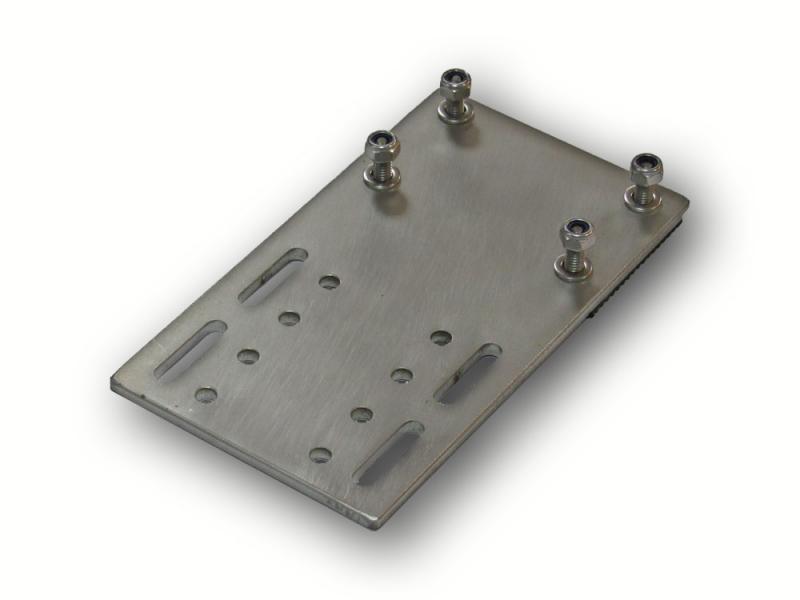

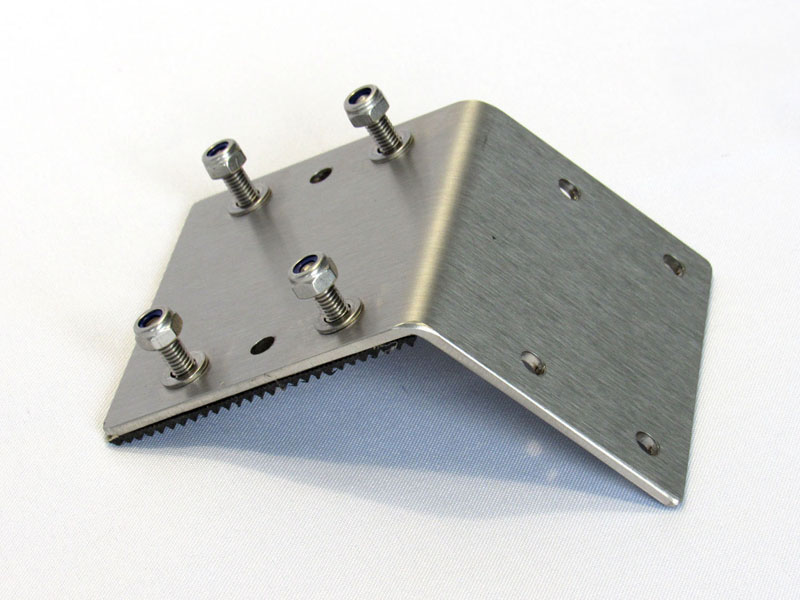

Additional flat platforms for tilt compensator
Additional flat platforms for tilt compensator
Additional flat platforms for tilt compensatorAdditional flat platforms for tilt compensator

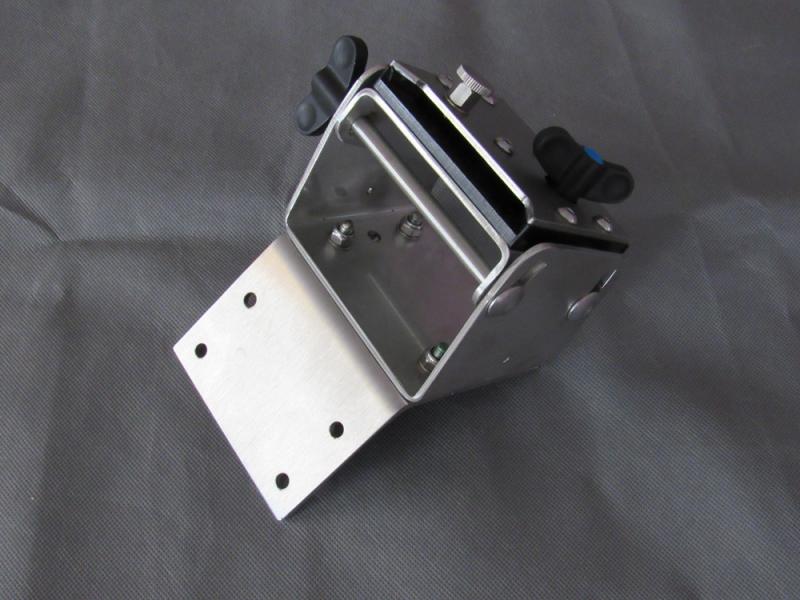

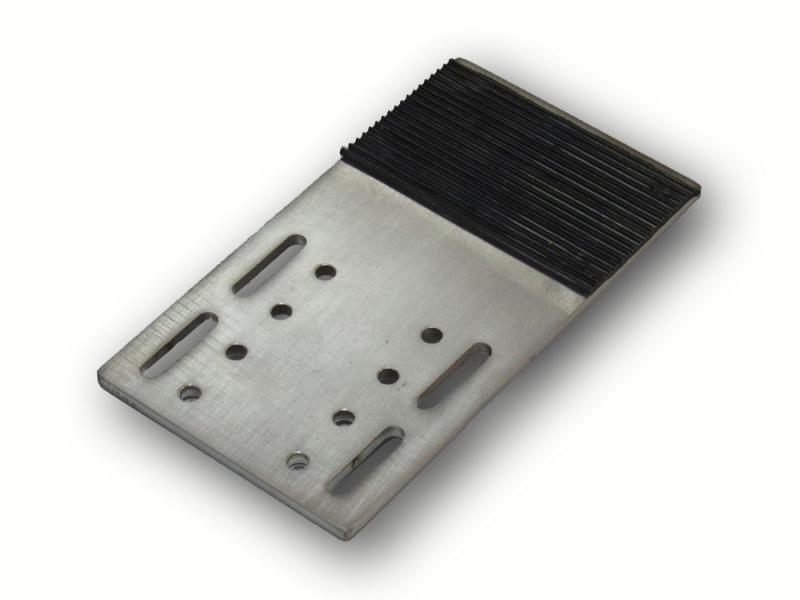

Additional flat platform for fixing the tilt compensator to the boat side. It is not necessary if you can fix the tilt compensator without the additional platform.

If your boat side is very wide you can install two platforms to get a much wider platform. Platform for Gunner Rail + flat platform. Or to fix together two flat platforms.

All platforms made from stainless steel. Also somewhere using plastic and rubber.

Price without VAT and discount 30 €

Plus delivery!

Terms and Conditions


Price: 35 €
Options:

Add to cart

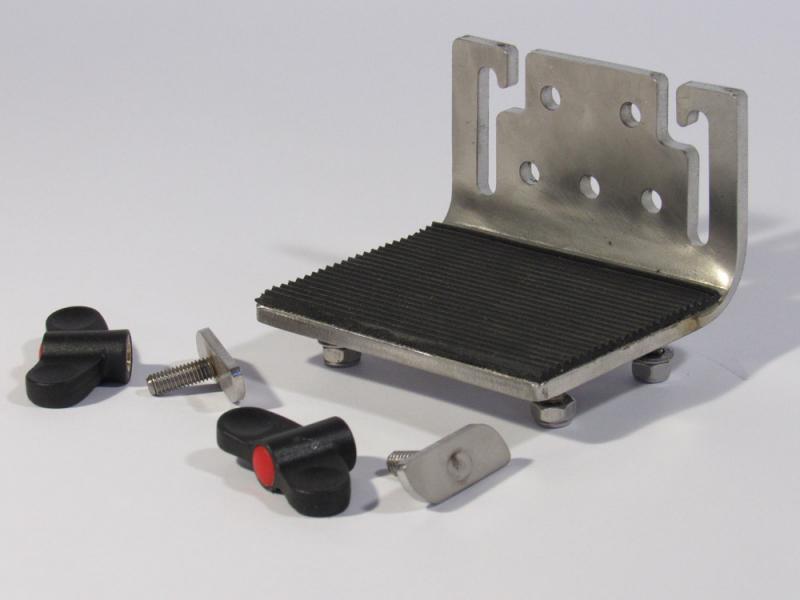

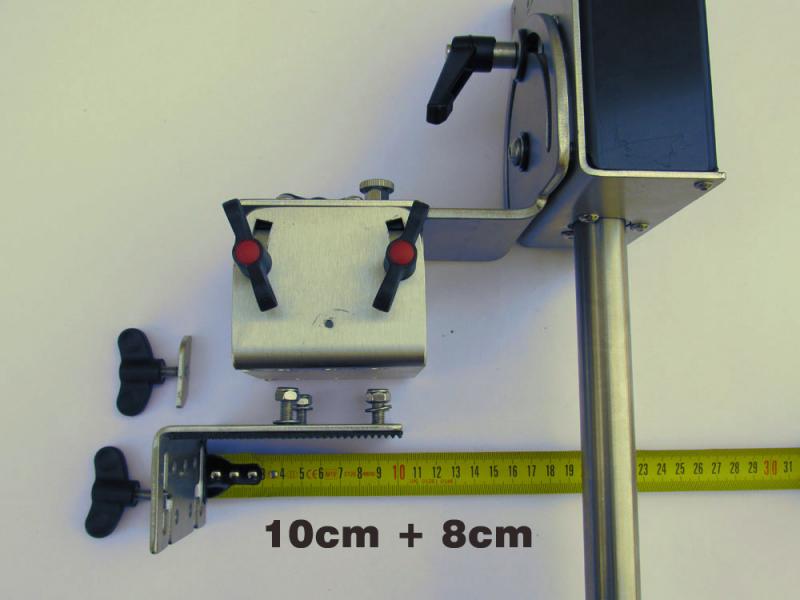

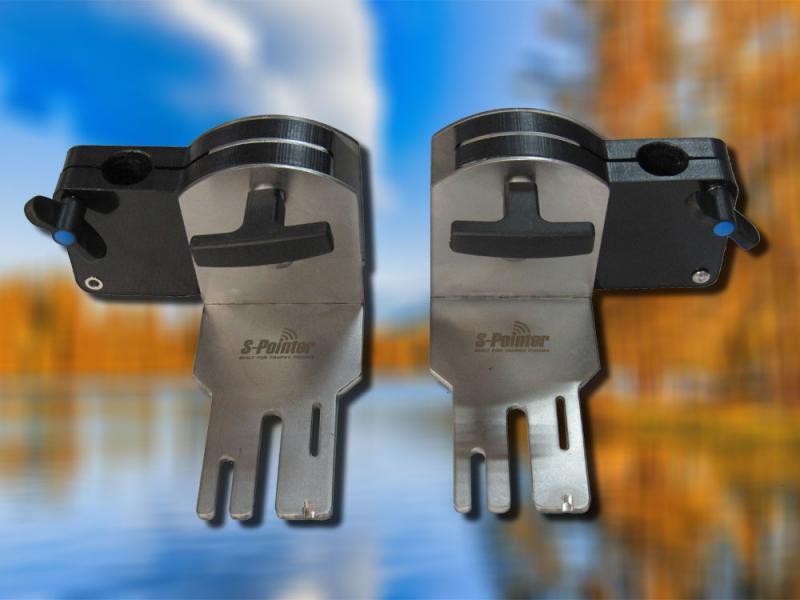

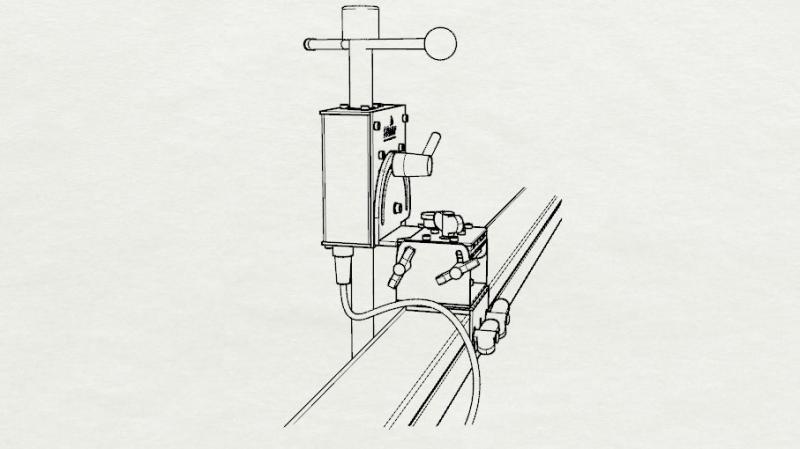

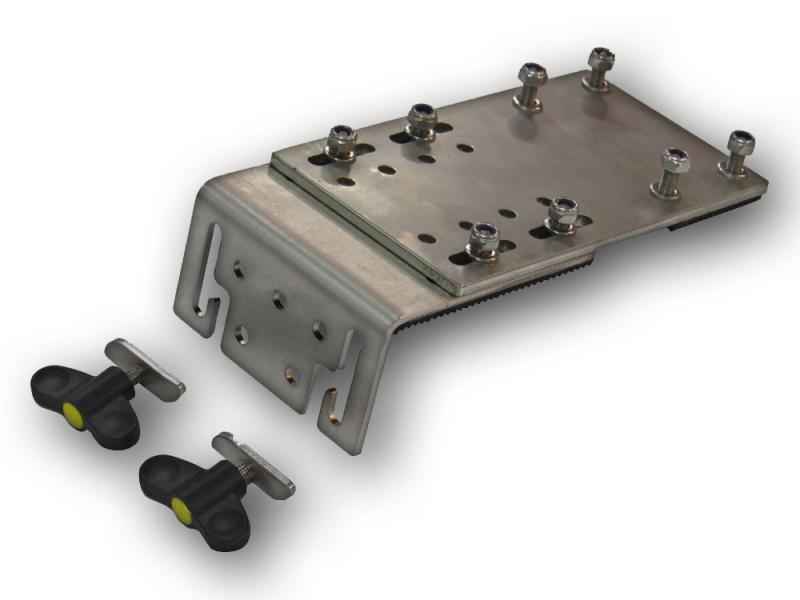

Platforms for Gunnel Rail
Platforms for Gunnel Rail
Platforms for Gunnel RailPlatforms for Gunnel RailPlatforms for Gunnel RailPlatforms for Gunnel RailPlatforms for Gunnel Rail

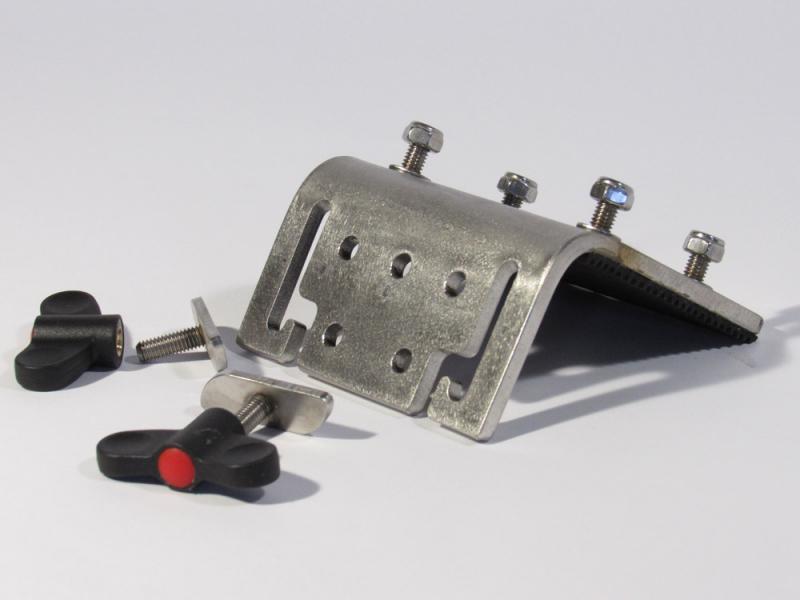

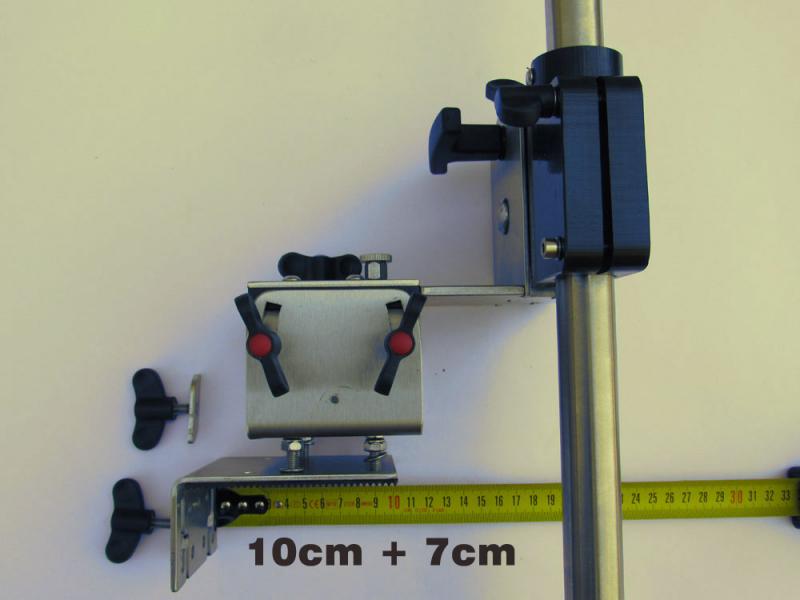

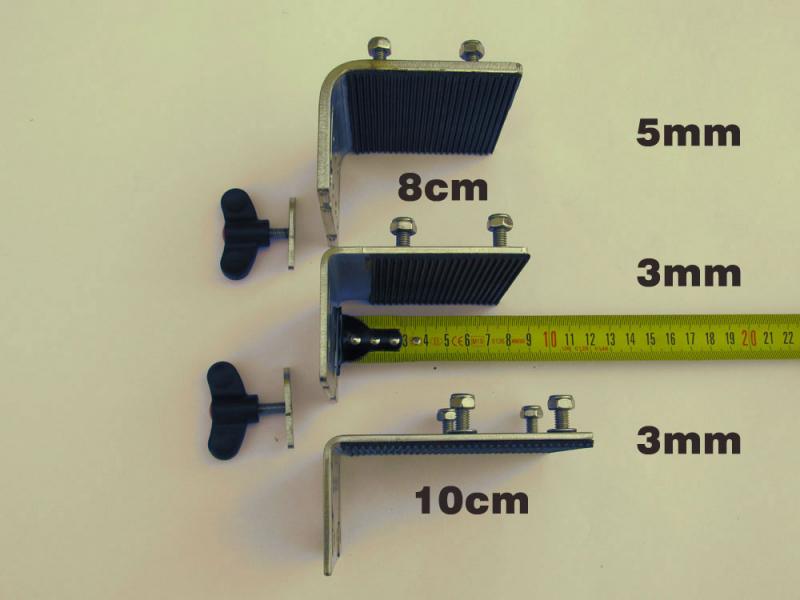

Our platforms for Gunnel Rail are two types. Top horizontal plane has 8cm or 10cm length.
Shorter platform suits to regular 8cm wide boat side with Gunnel Rail.
Longer platform suits to wider boat side or regular 8cm boat side with rubber protection strip fixed to outside of boat side.
Our platforms for Gunnel rail have two types of M6 (6mm) bolts. The wider one (European style) is 13mm and the narrower one (North American style) is 6,5mm.
Also, the platform that is designed for the Gunnel Rail can be used even if your boat doesn't have the Gunnel Track. You can fix this platform using the bolts and screwing directly through your boat side.

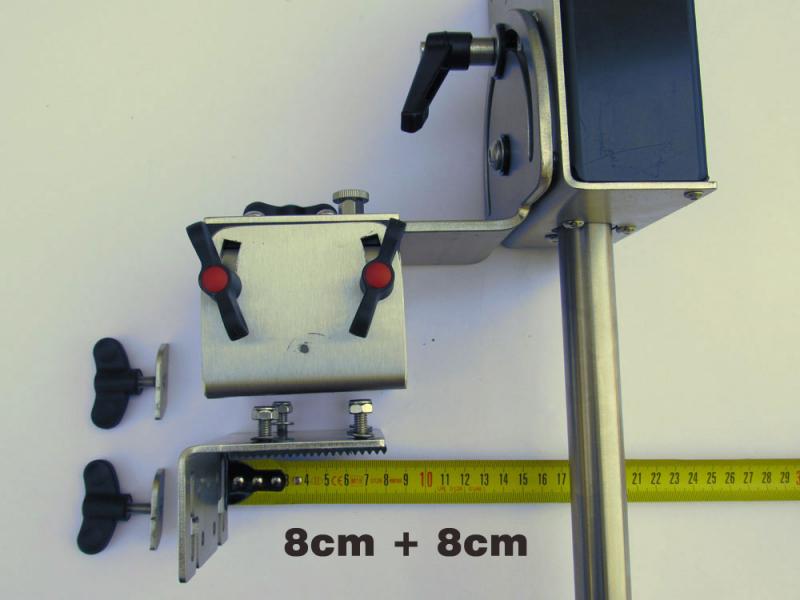

If your boat side is very wide you can install two platforms to get a much wider platform. Platform for Gunner Rail + flat platform.

All platforms made from stainless steel. Also somewhere using plastic and rubber.

Price without VAT and discount 33 / 37 €

Plus delivery!

Terms and Conditions


Price: 40 €
Options:

Add to cart

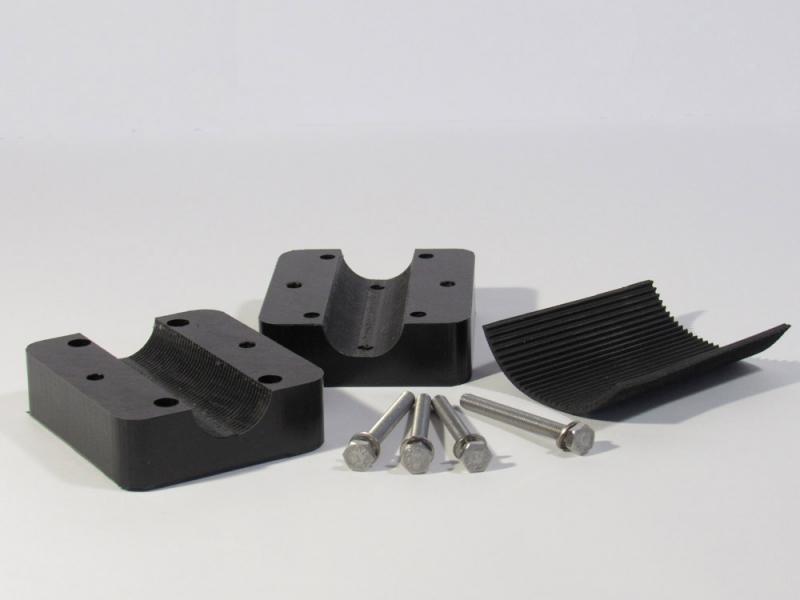

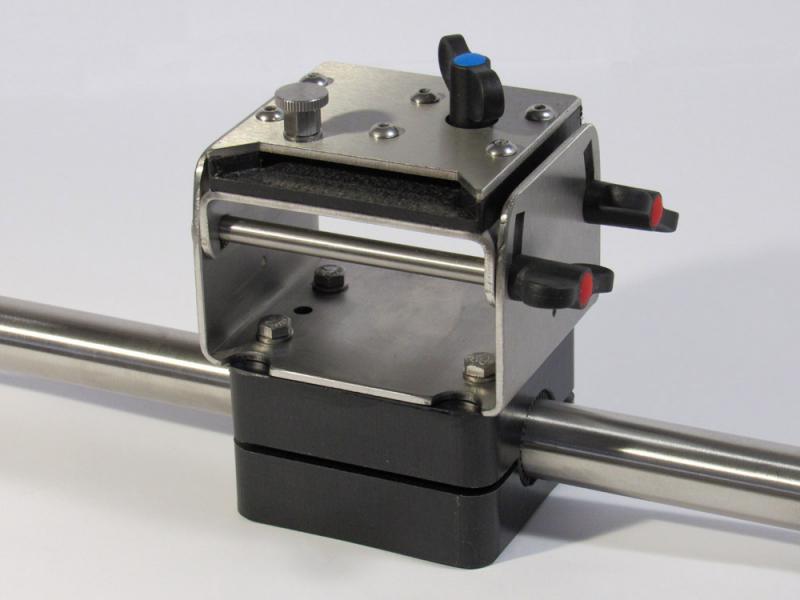

Platforms for tilt compensator to fix on railing tube
Platforms for tilt compensator to fix on railing tube
Platforms for tilt compensator to fix on railing tubePlatforms for tilt compensator to fix on railing tubePlatforms for tilt compensator to fix on railing tubePlatforms for tilt compensator to fix on railing tube

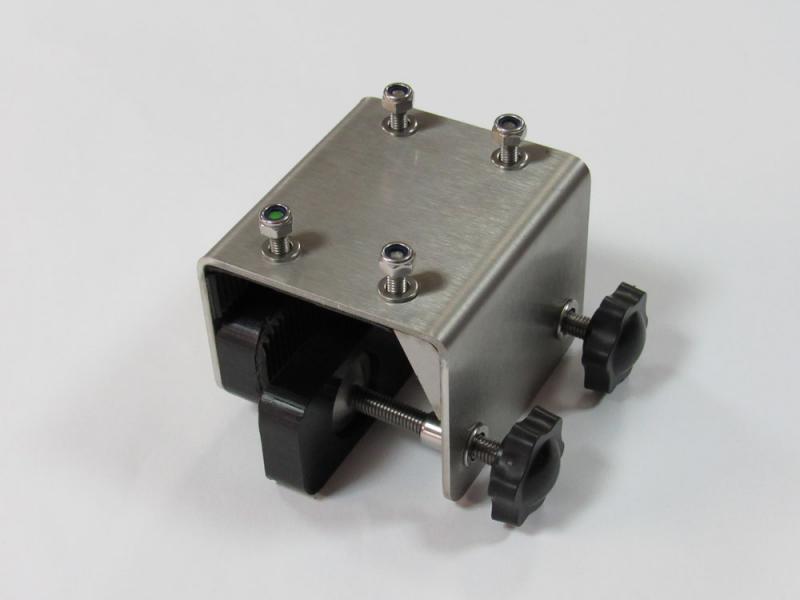

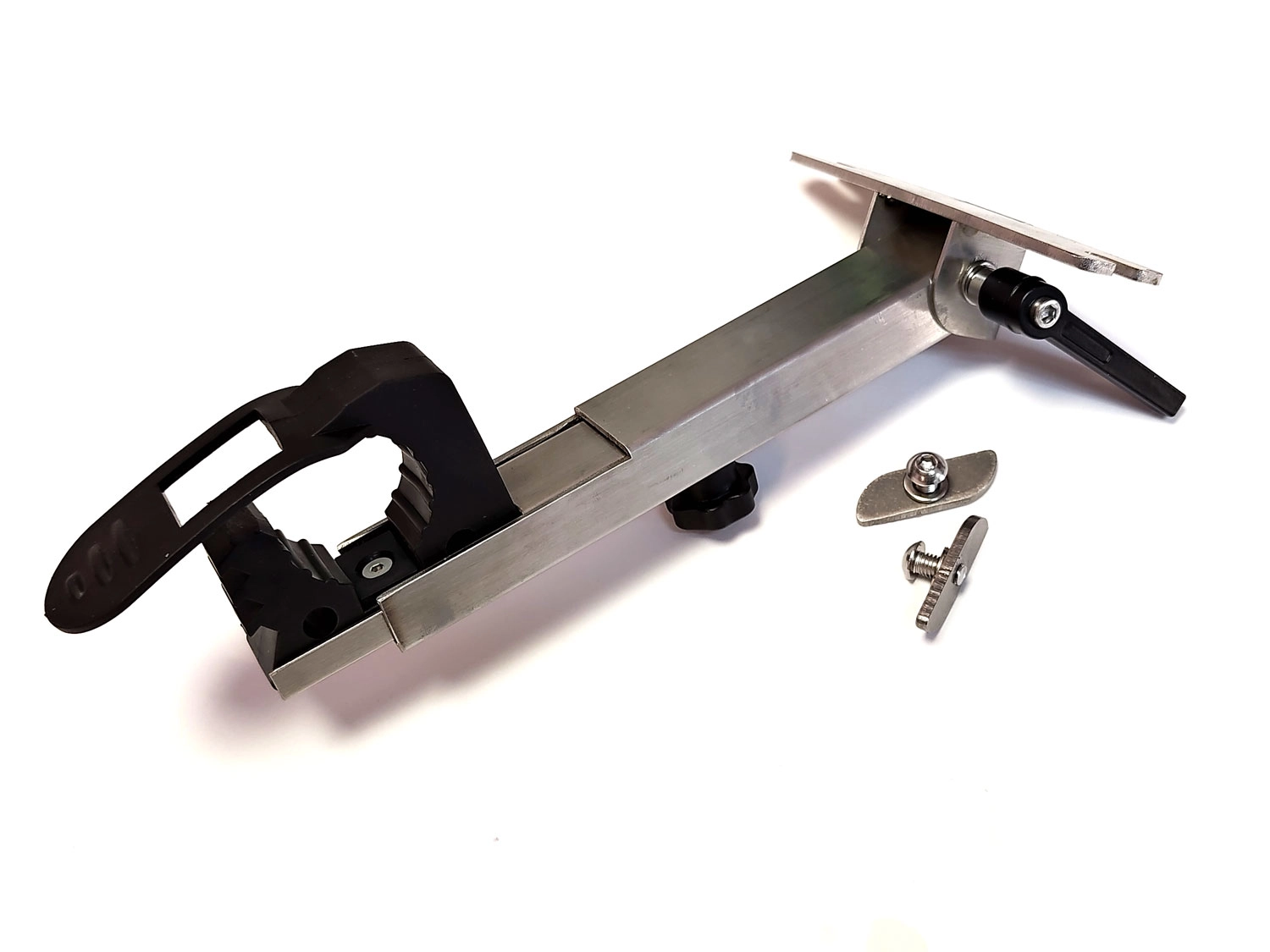

Platforms to fix the tilt compensator on boat side railing.
Here is only one type fixing for three diameter railings.

Price without VAT and discount 37 €

Plus delivery!

Terms and Conditions


Price: 45 €
Options:

Add to cart

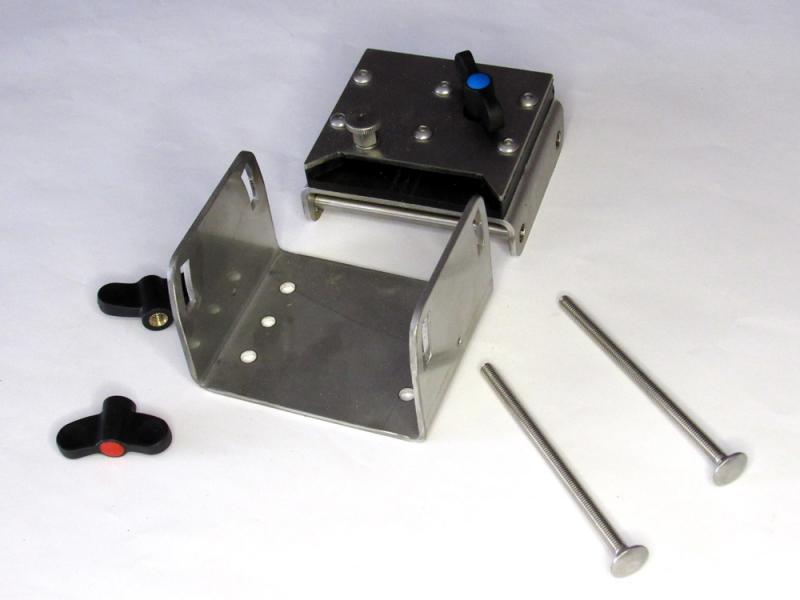

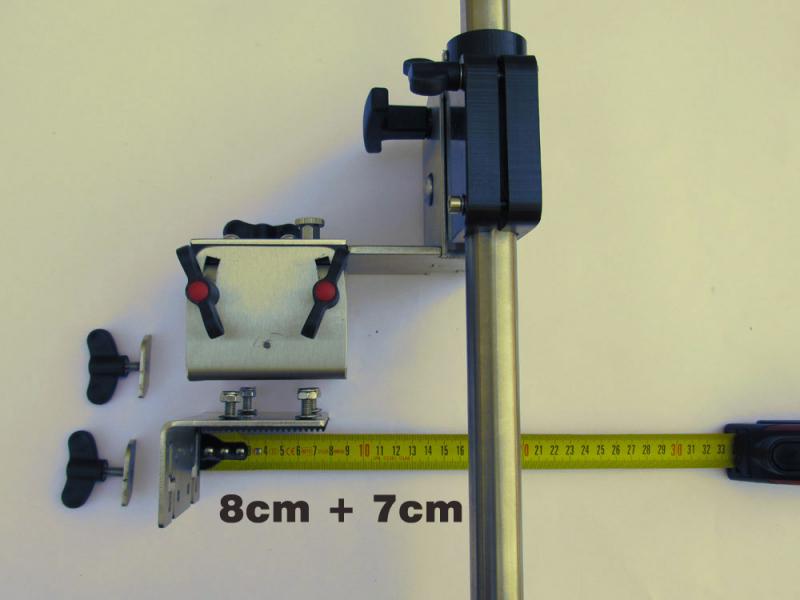

Additional specialized platforms for tilt compensator
Additional specialized platforms for tilt compensator
Additional specialized platforms for tilt compensatorAdditional specialized platforms for tilt compensatorAdditional specialized platforms for tilt compensatorAdditional specialized platforms for tilt compensator

Additional specialized platforms for fixing the tilt compensator to the boat side. It is not necessary if you can fix the tilt compensator without the additional platform.

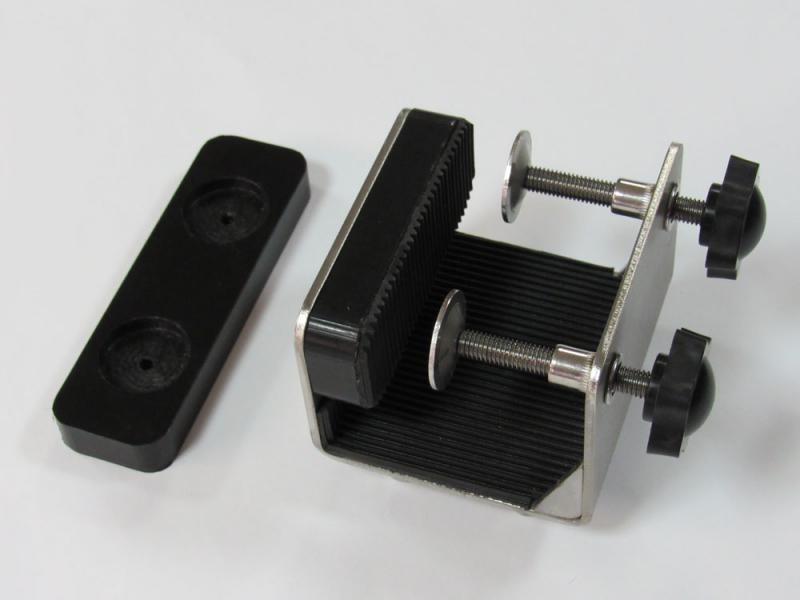

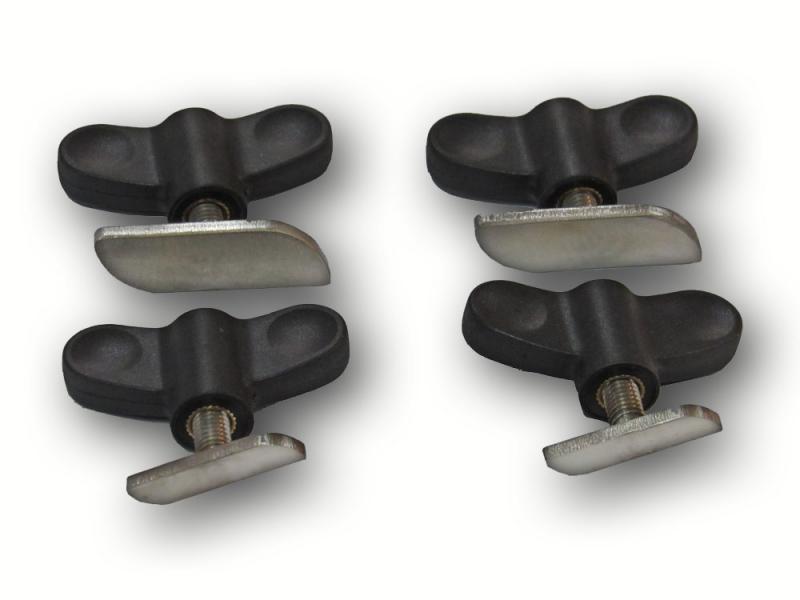

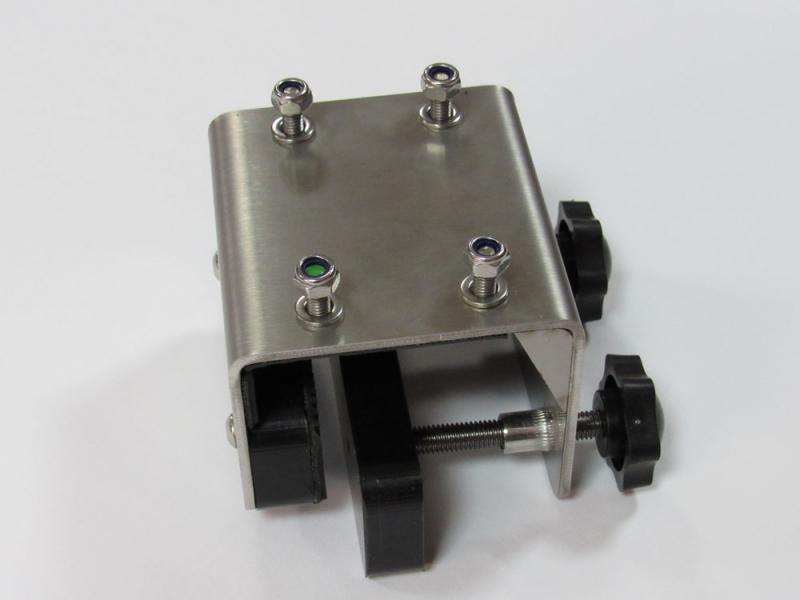

Platforms for narrow (~35mm) boat side. This platfor is fixed to boat side using compression knobs. No drilling or additional bolts fixing. Easy to take out. Designed for Marine 400 boat.

Platform for old Kazanka boat is bended 115° and for this platform necessary to buy special tilt compensator for the same type boat. In photos No.4 and No.5 is showed this platform with special tilt compensator.

All platforms made from stainless steel. Also somewhere using plastic and rubber.

Price without VAT and discount 50 / 33 €

Plus delivery!

Terms and Conditions


Price: 60 €
Options:

Add to cart

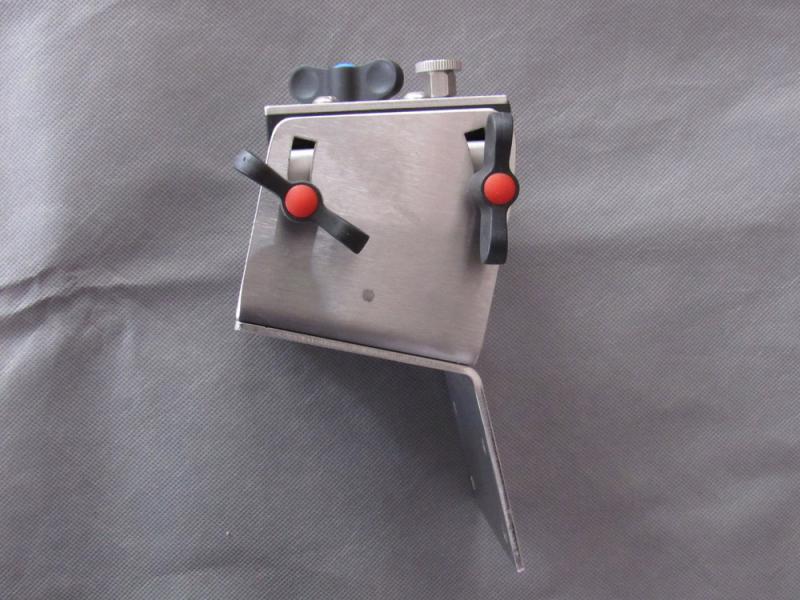

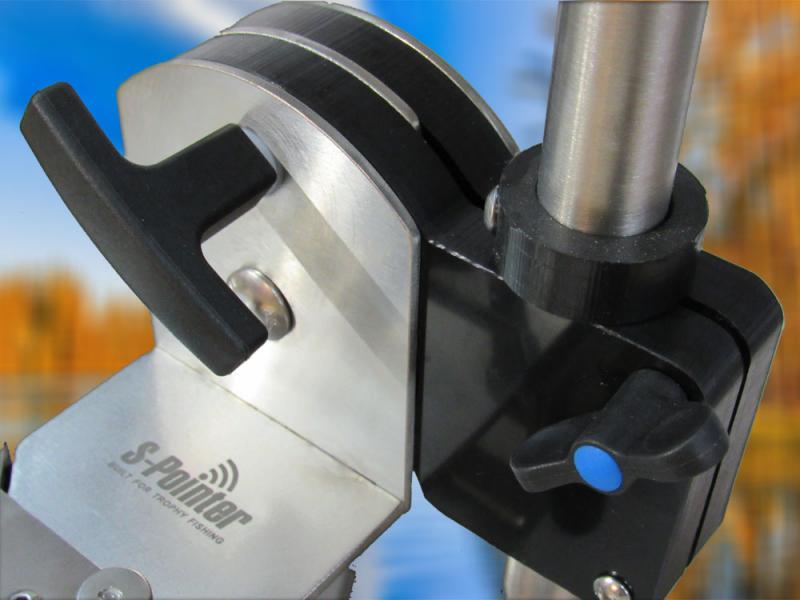

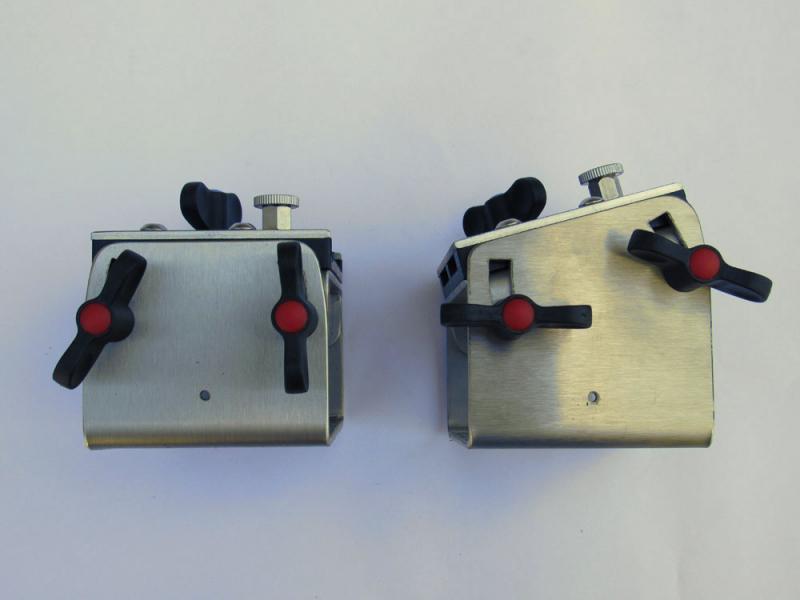

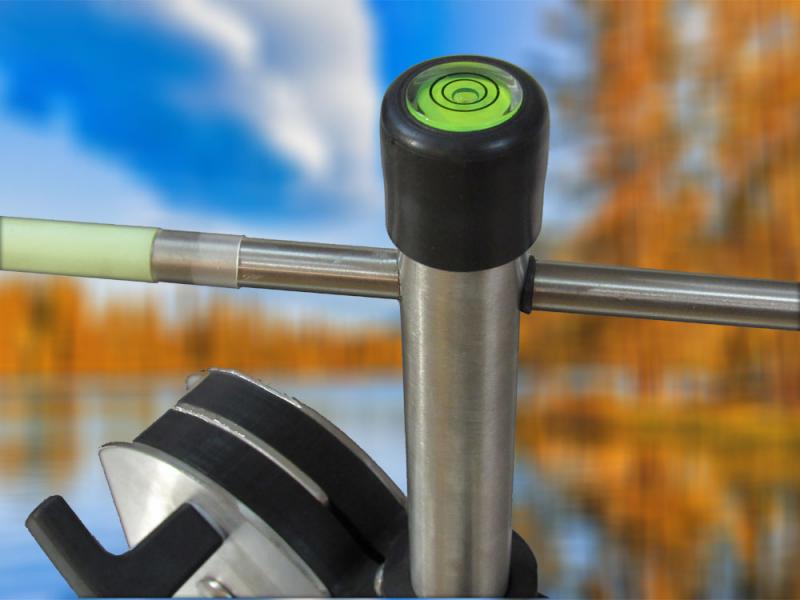

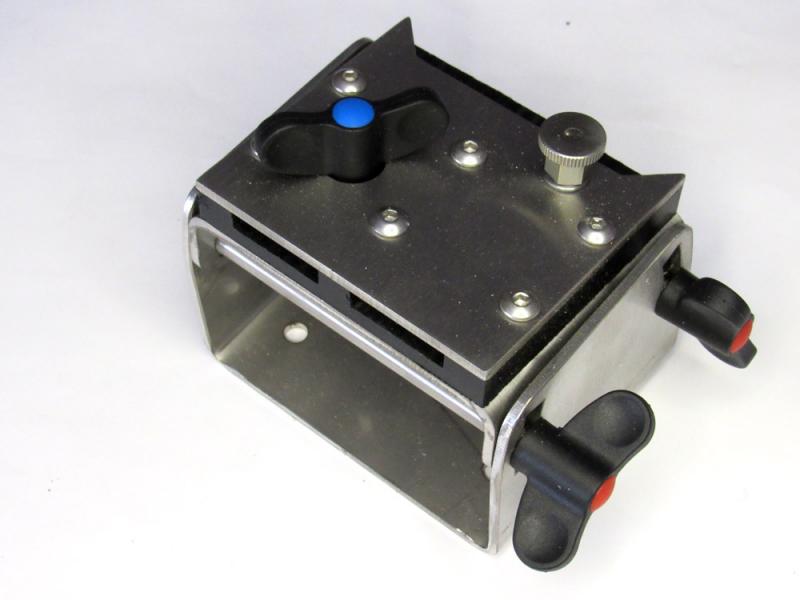

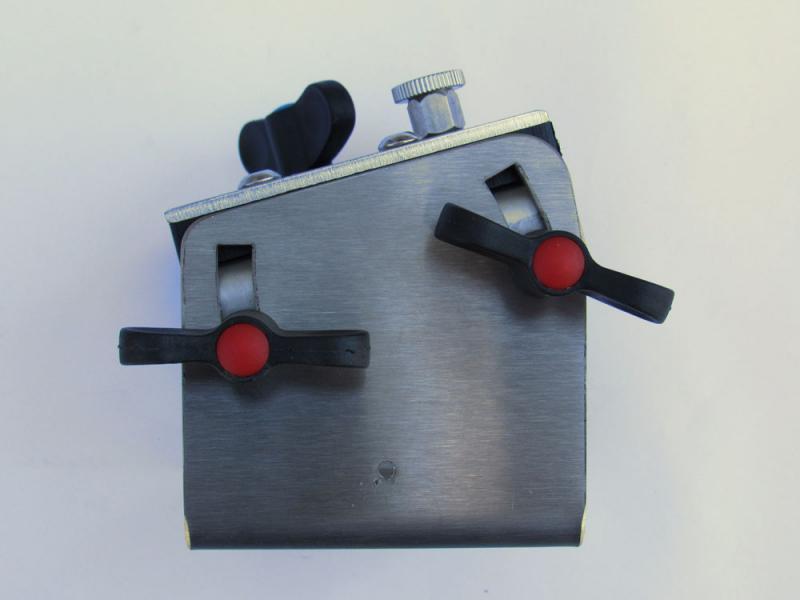

Tilt compensator for S-Pointer
Tilt compensator for S-Pointer
Tilt compensator for S-PointerTilt compensator for S-PointerTilt compensator for S-PointerTilt compensator for S-PointerTilt compensator for S-Pointer

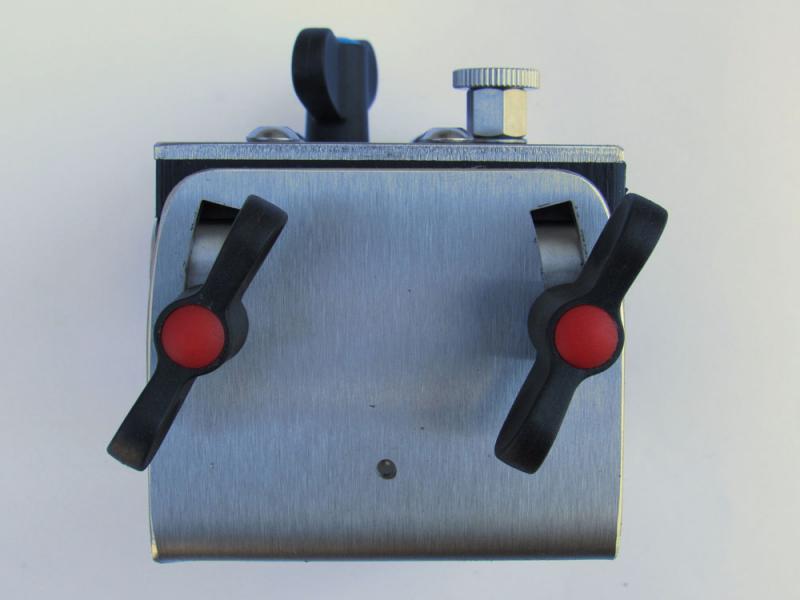

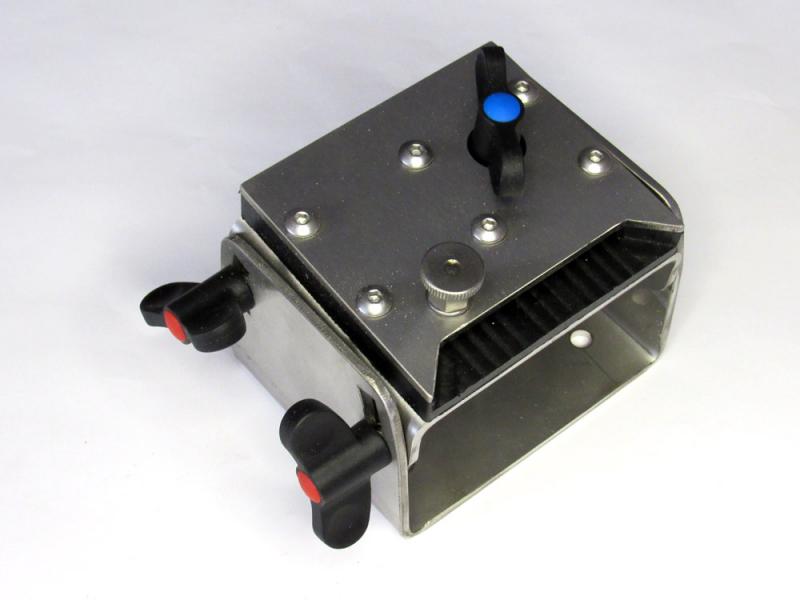

This part is necessary for a sonar rotator to make sure the pole of the sonar mount is exactly in a vertical position. It suits to manual and motorized-manual “S-Pointer” mounts. When you buy manual or motorized/automated "S-Pointer" in set already includer this tilt compensator. You can buy it just like additional part for example to make possibility to use the same "S-Pointer" on an other boat too.

The boat tilt compensator can be fixed using bolts or screwing directly through your boat side. Or fixed using nuts on any of "S-Pointer" platform.

The tilt compensator for example for old Kazanka boat is designes by special angle and suits to special platform for old Kazanka boat. In photo No.7 is showed this platform with special tilt compensator. Also this tilt compensator suits to all other platforms too if it is necessary.

The tilt compenstor is made from stainless steel.

Price without VAT and discount 80 €

Plus delivery!

Terms and Conditions


Price: 100 €
Options:

Add to cart

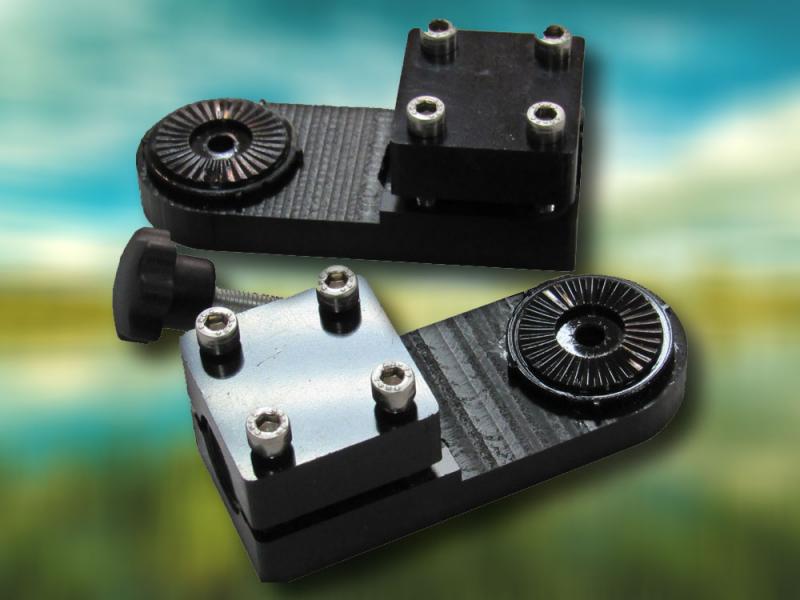

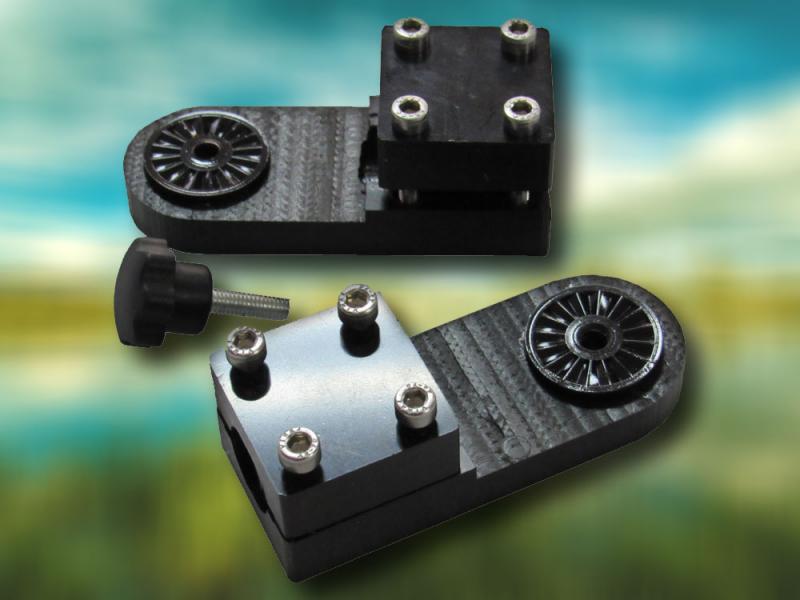

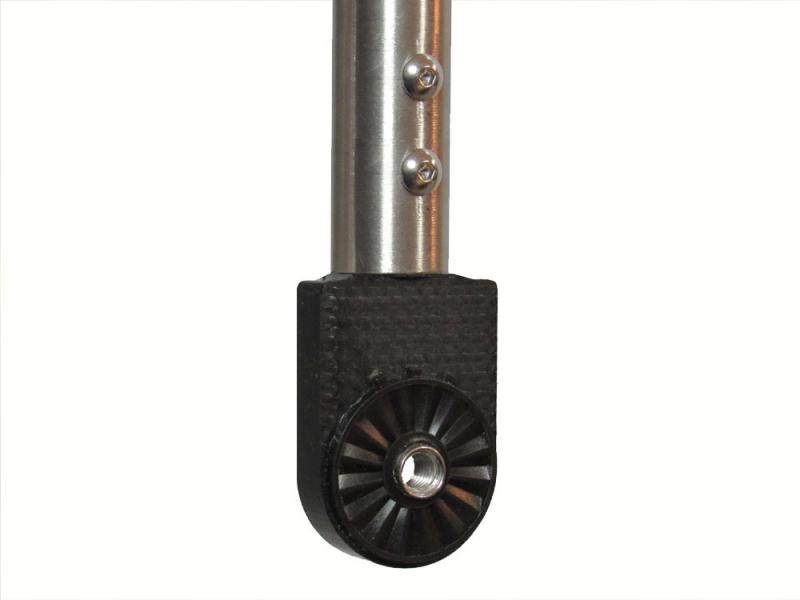

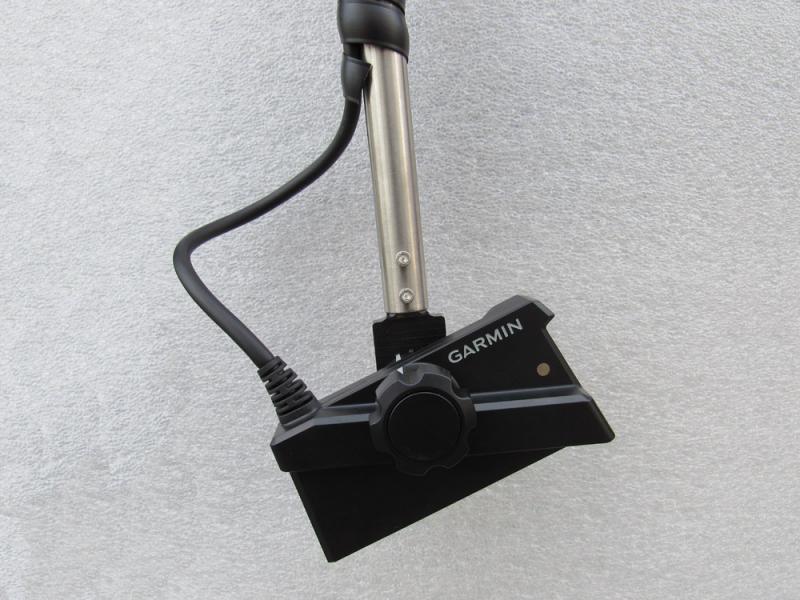

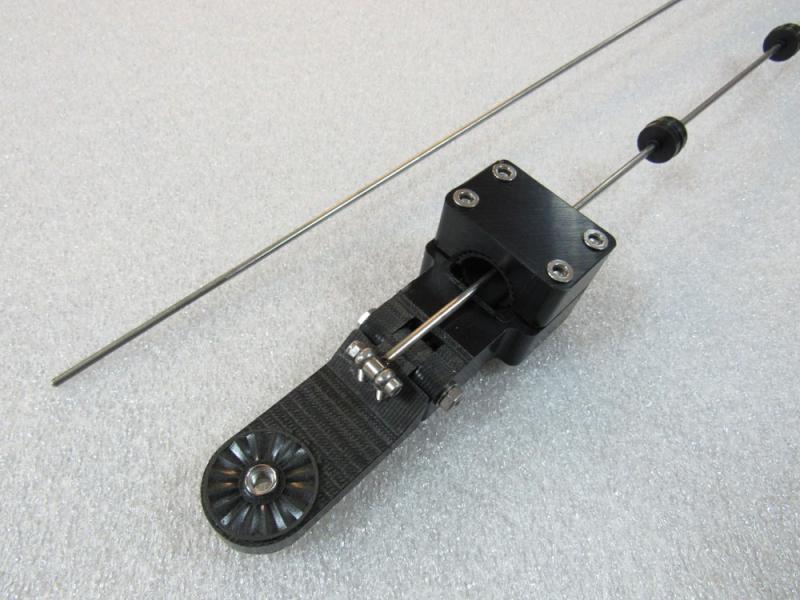

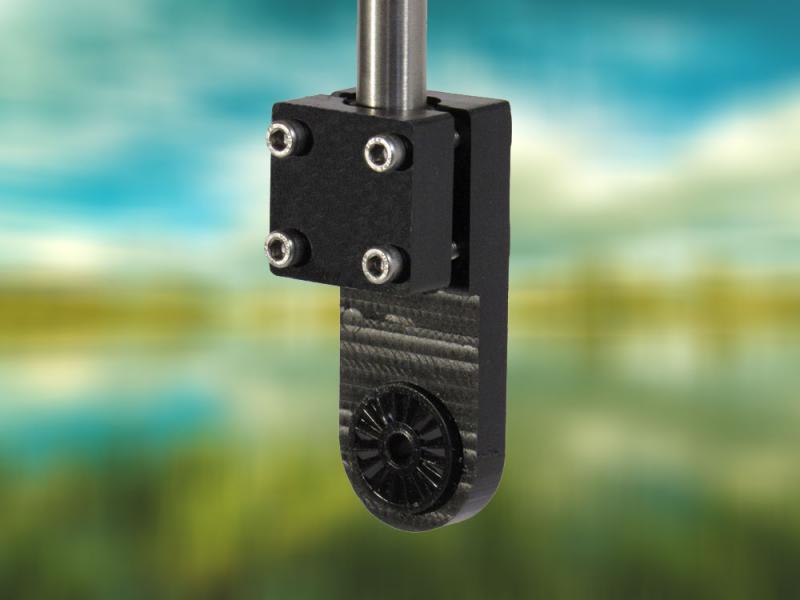

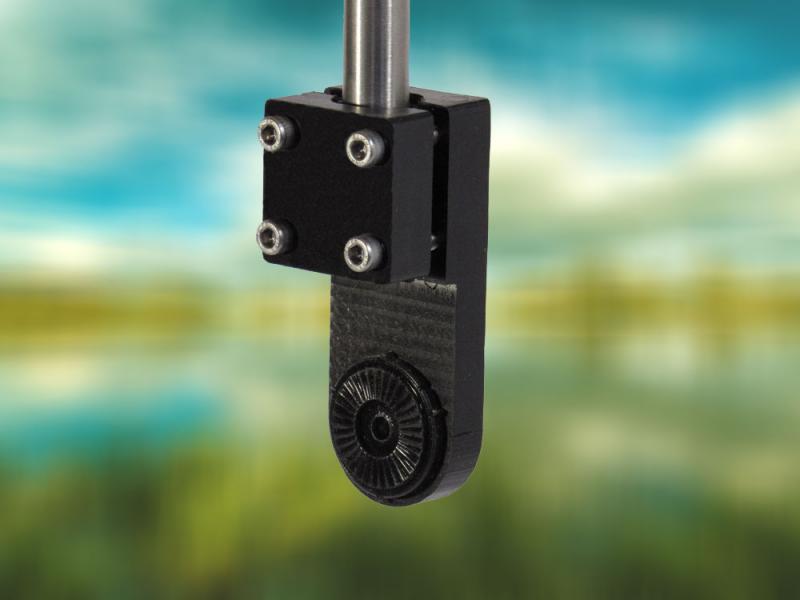

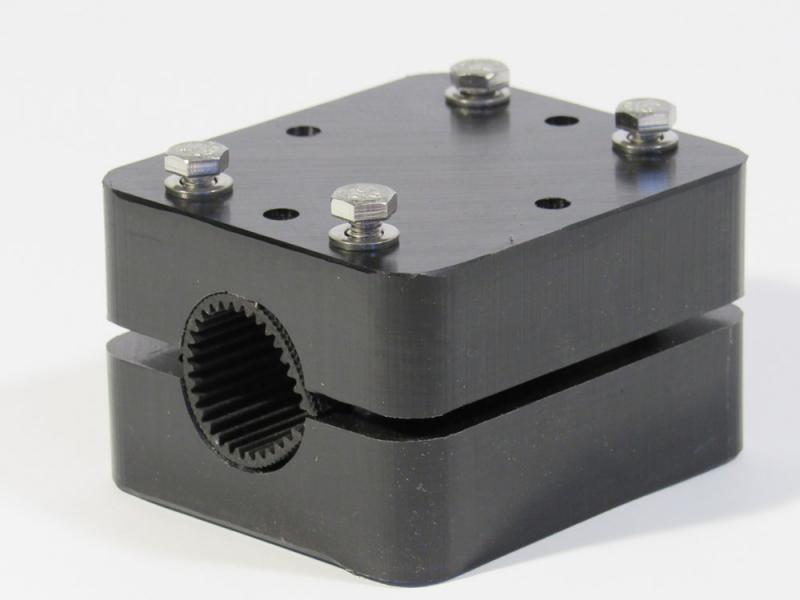

Transducer mount for the Ø 25-30mm pole
Transducer mount for the Ø 25-30mm pole
Transducer mount for the Ø 25-30mm poleTransducer mount for the Ø 25-30mm poleTransducer mount for the Ø 25-30mm poleTransducer mount for the Ø 25-30mm pole

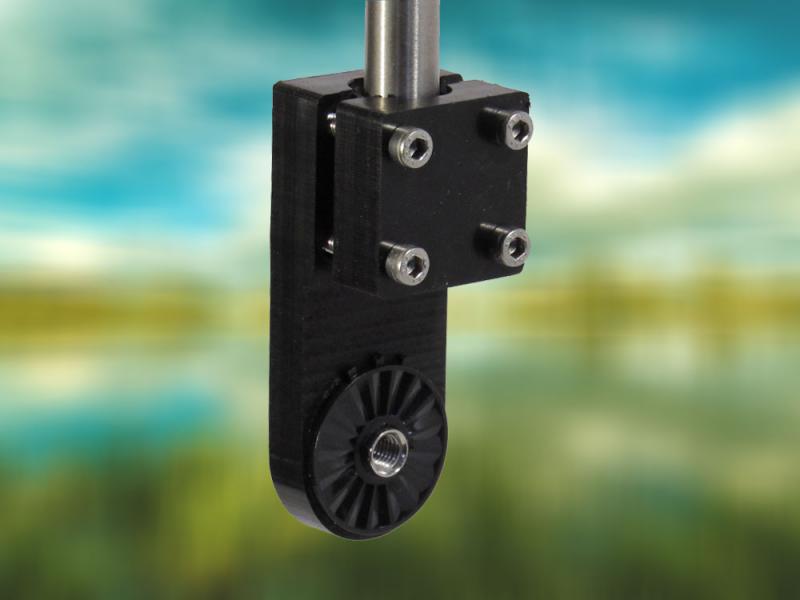

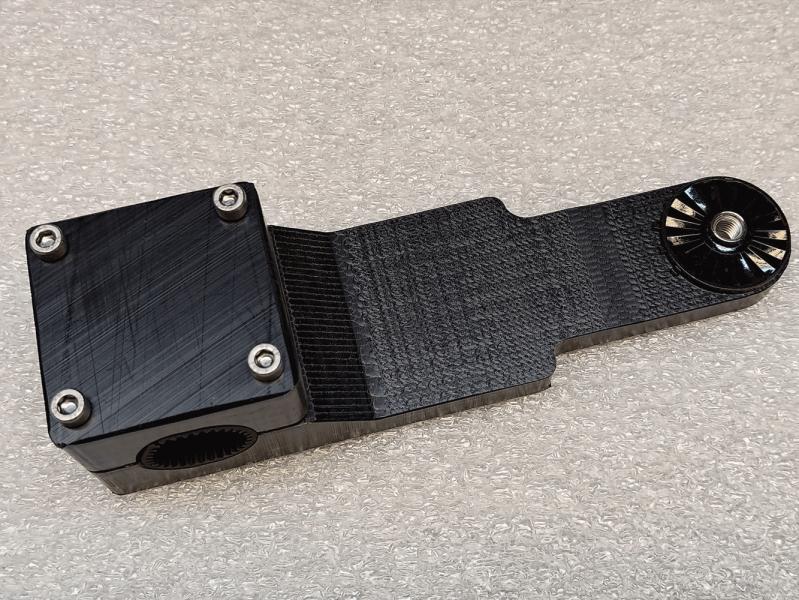

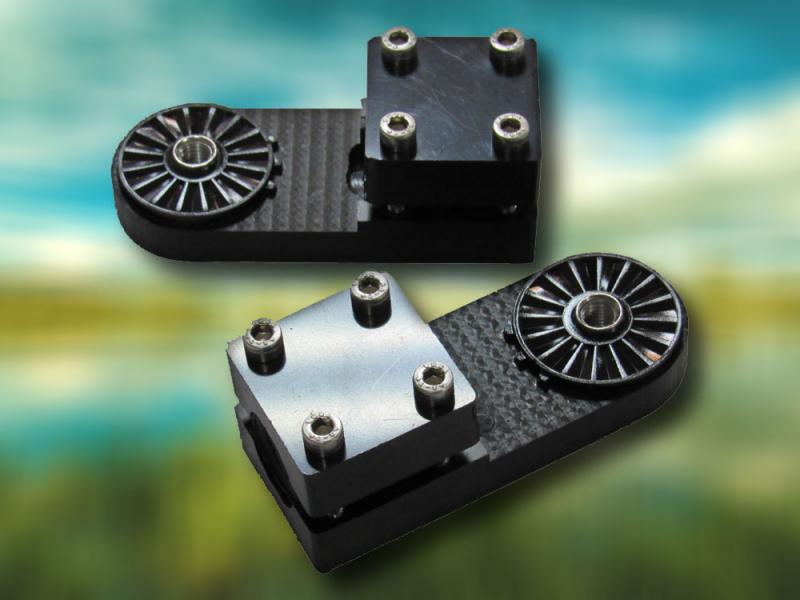

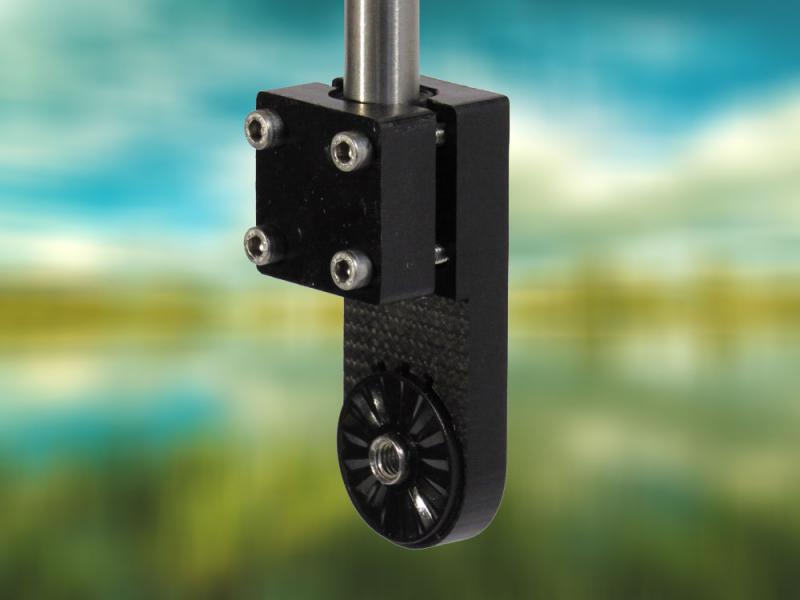

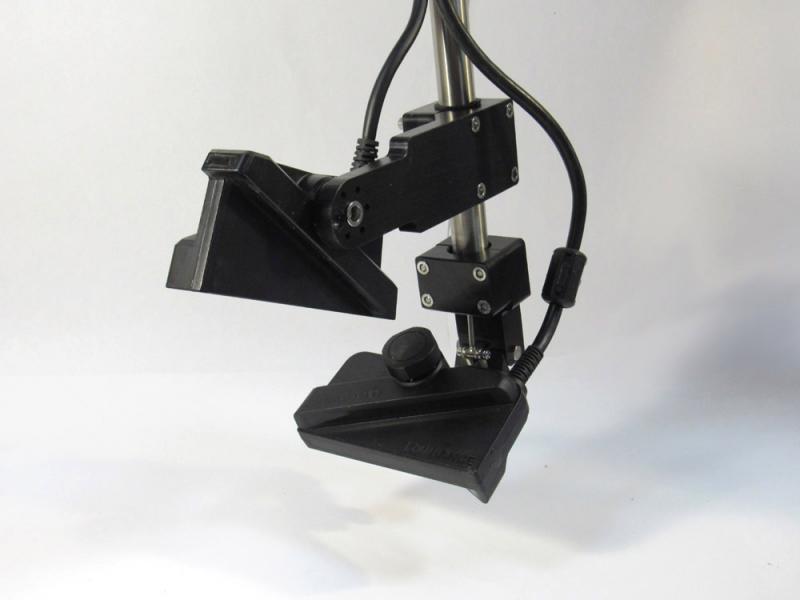

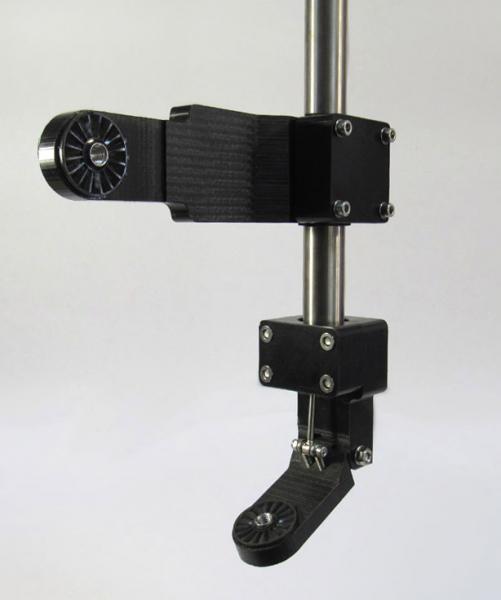

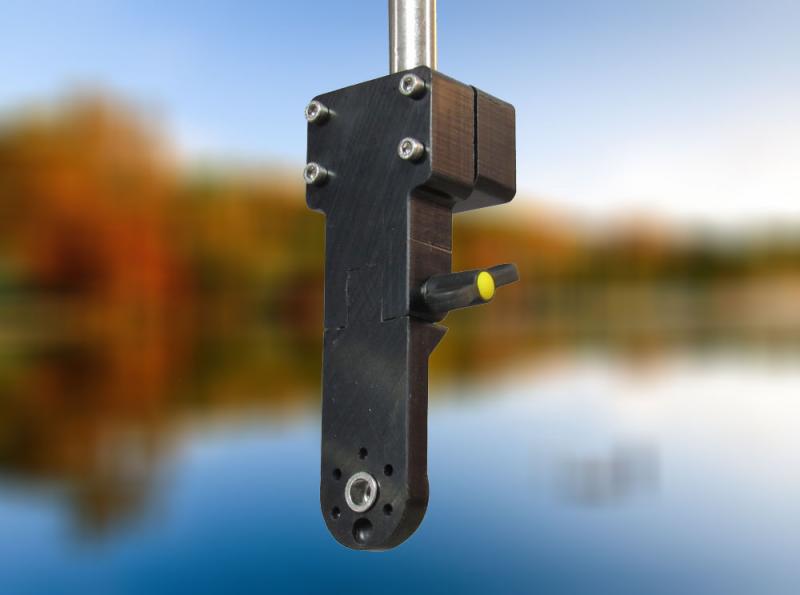

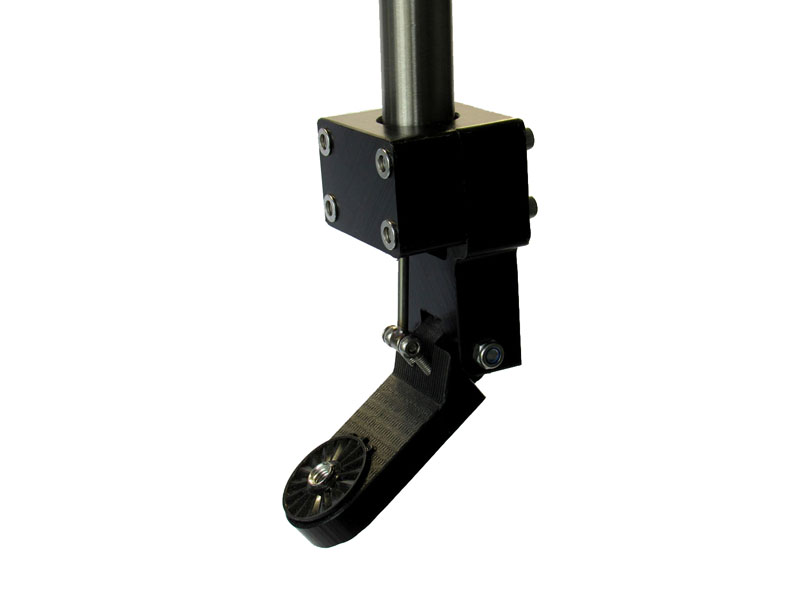

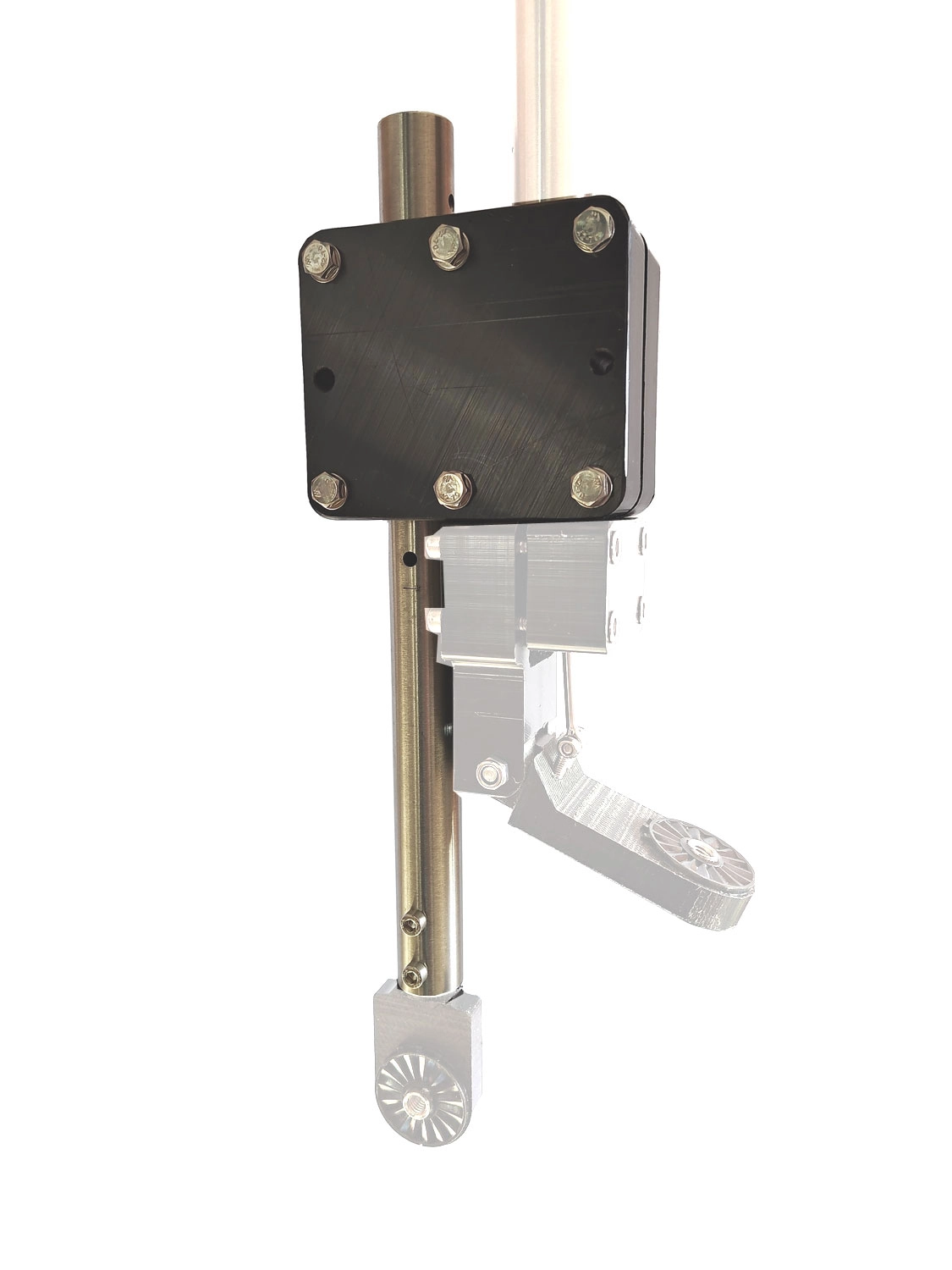

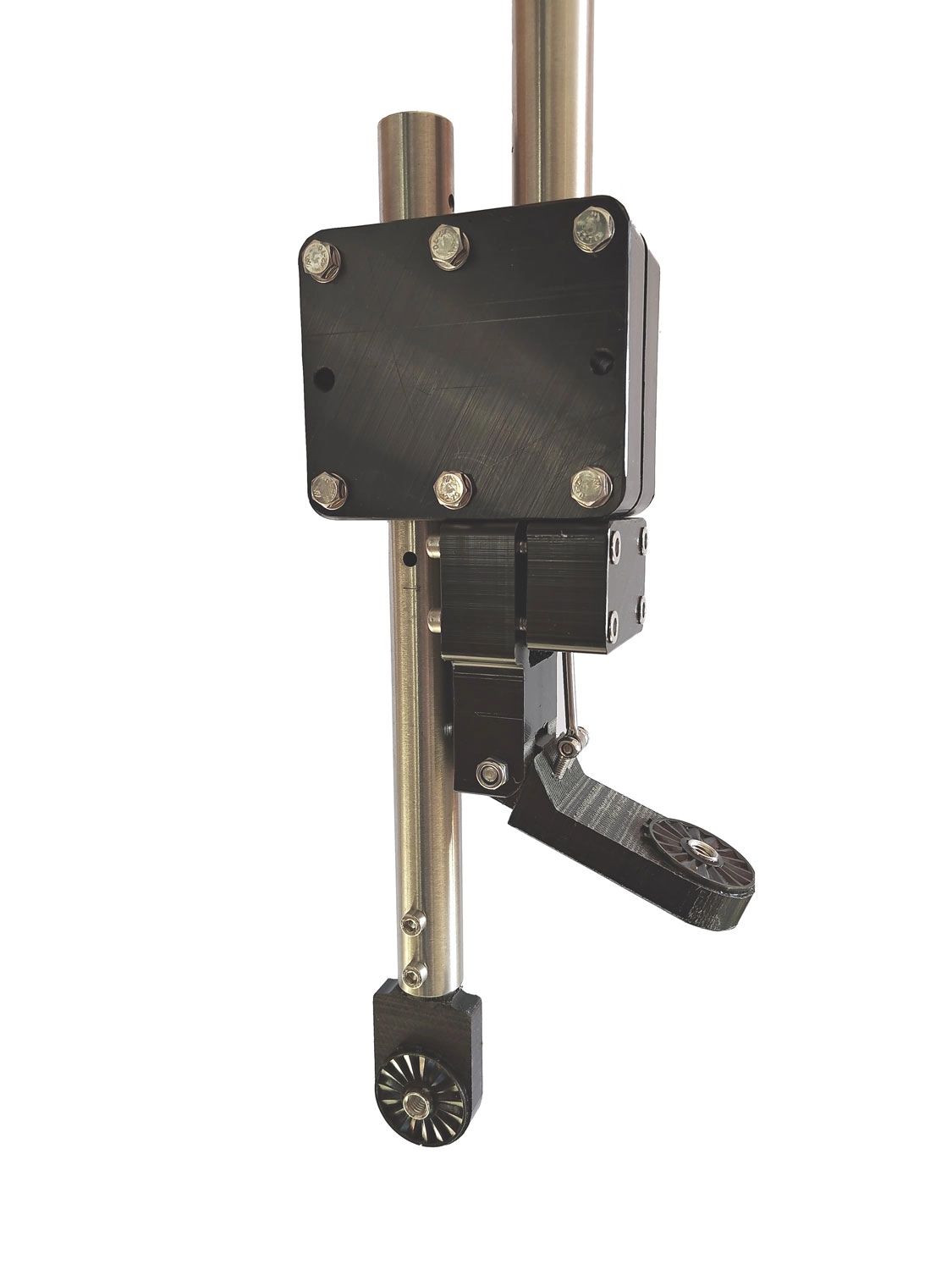

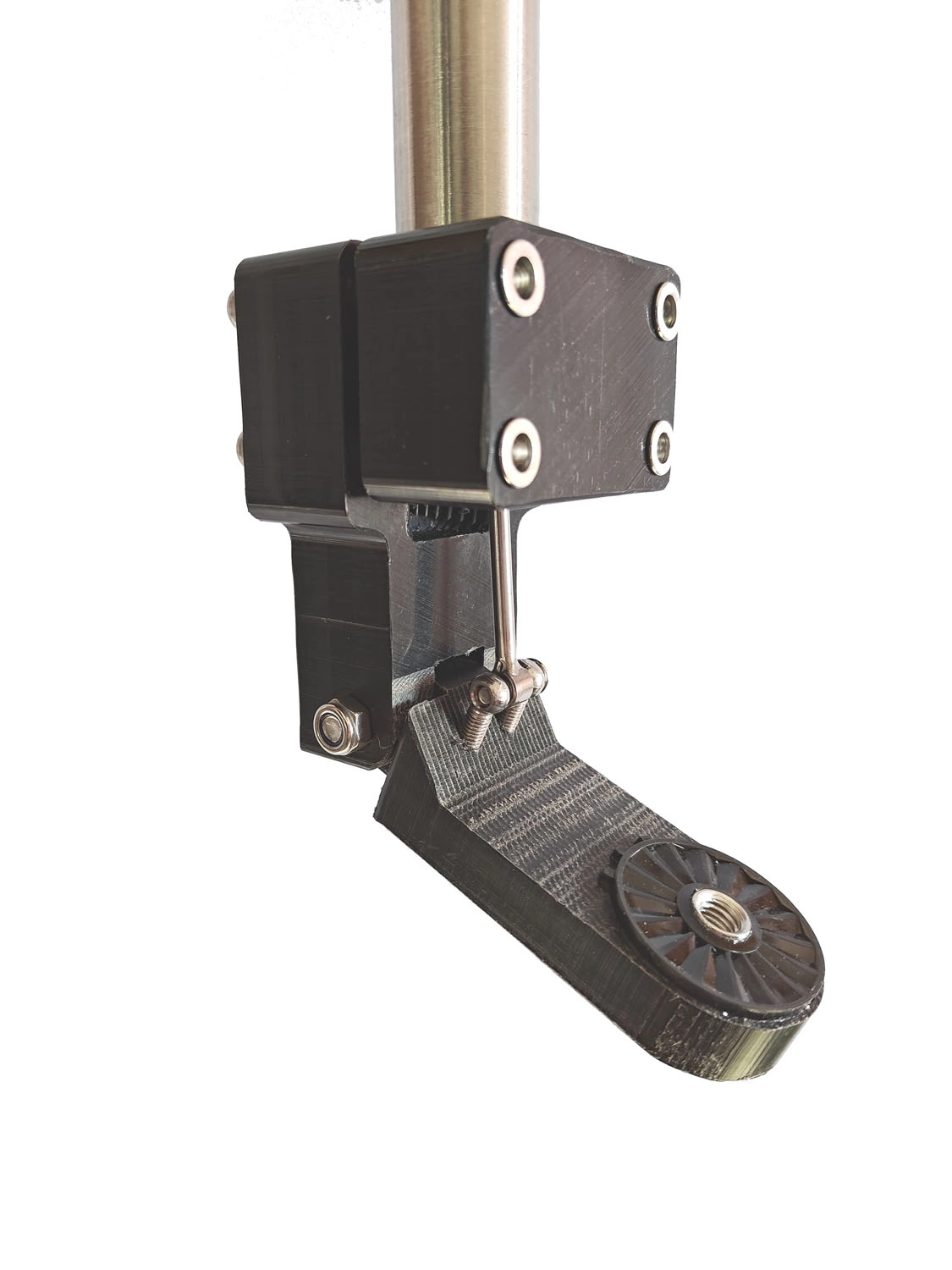

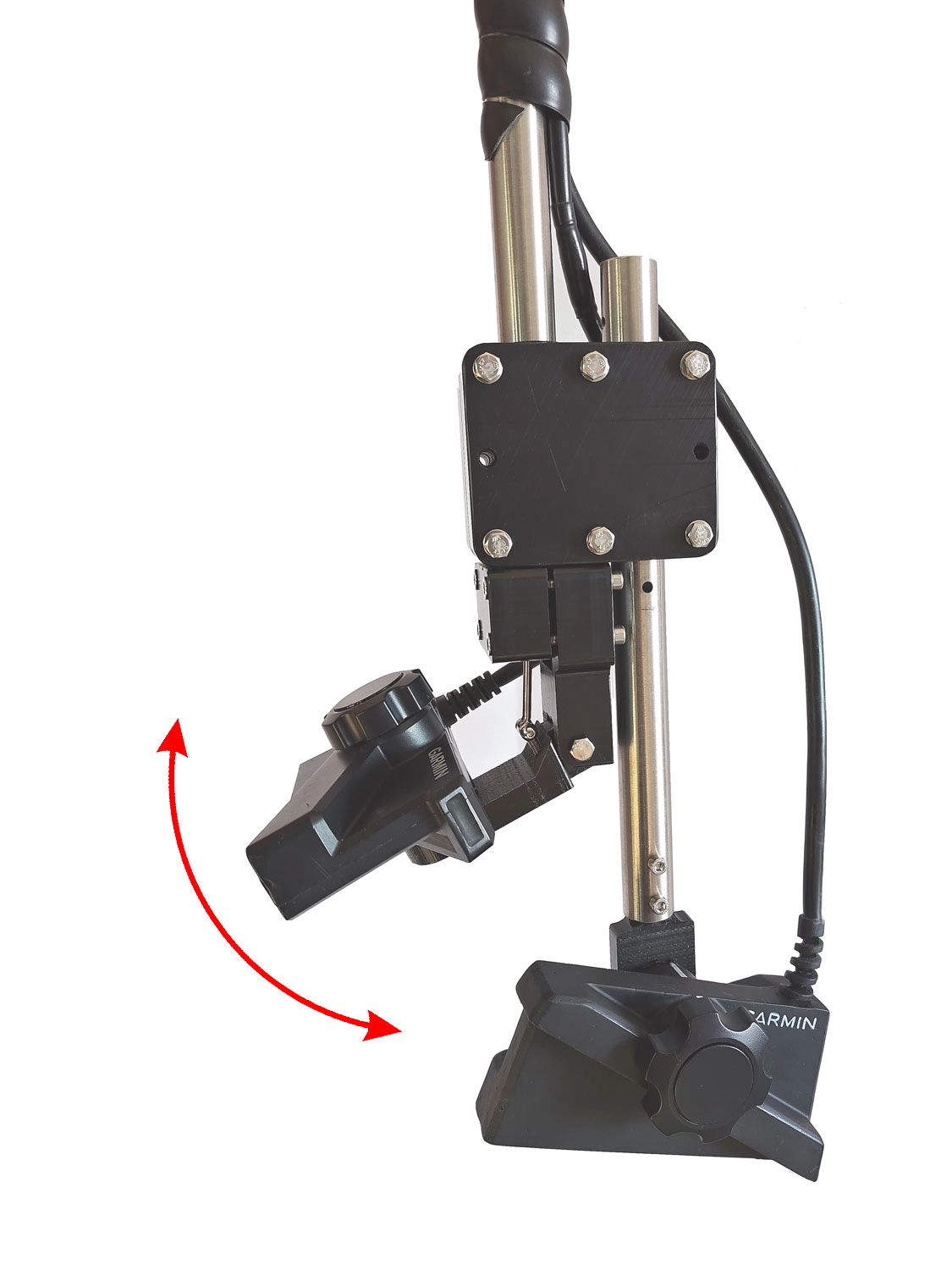

0° (zero degree) transducer mounts for the Ø25-30mm pole.

Supported Live Sonar Systems:
*  Garmin Panoptix LiveScope LVS32 / LVS34
*  Lowrance ActiveTarget / ActiveTarget 2

Regardless of the Live Sonar system you are using, there are three ways of searching for fish:
*  The Downward view mode
*  The Forward view mode

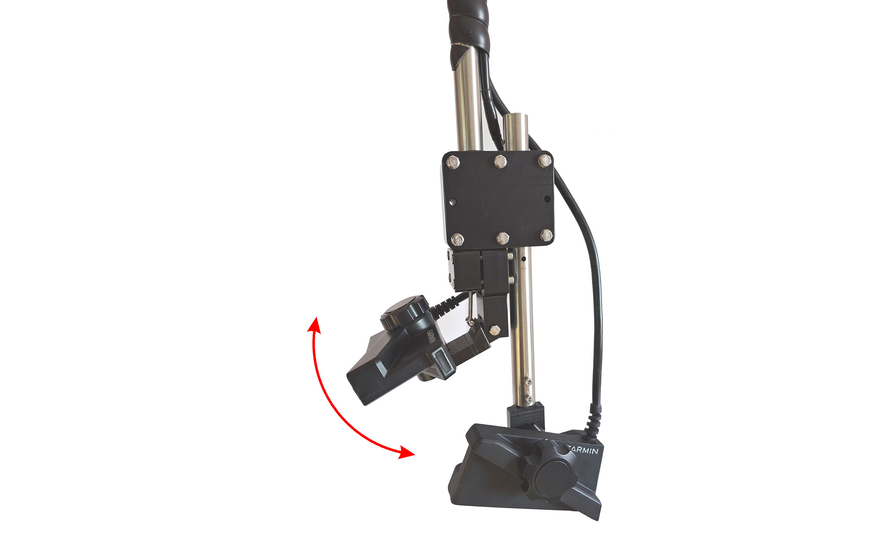

*  The Perspective view mode

Produced from blank plastic using CNC milling machine. NOT 3D PRINTED.

Price without VAT and discount 37 €

Plus delivery!

Terms and Conditions


Price: 45 €
Options:

Add to cart

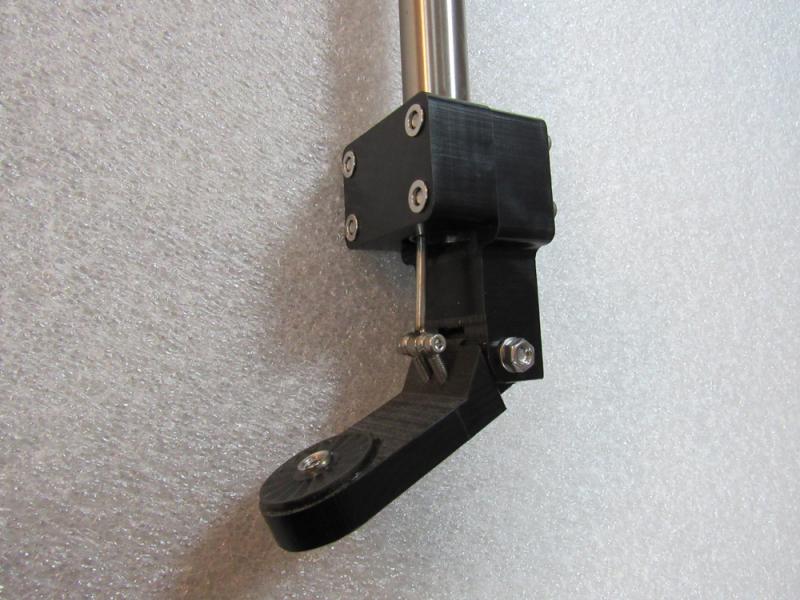

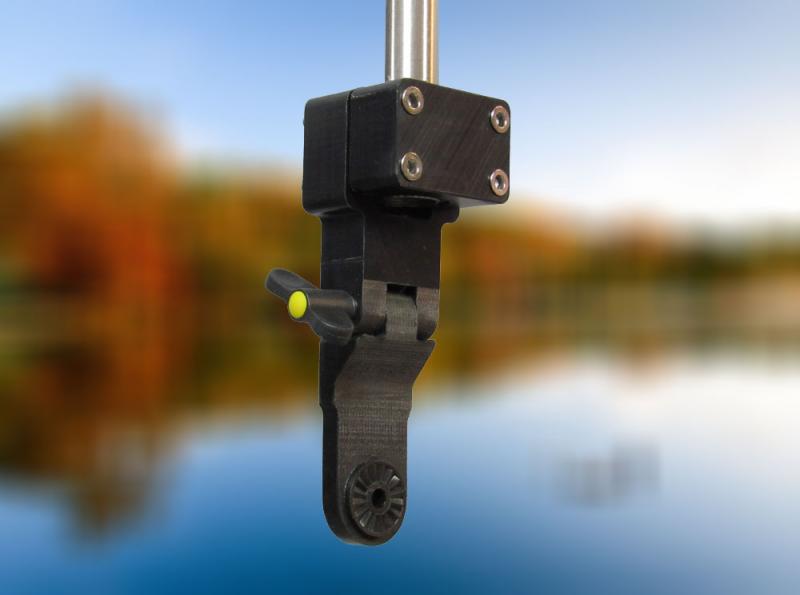

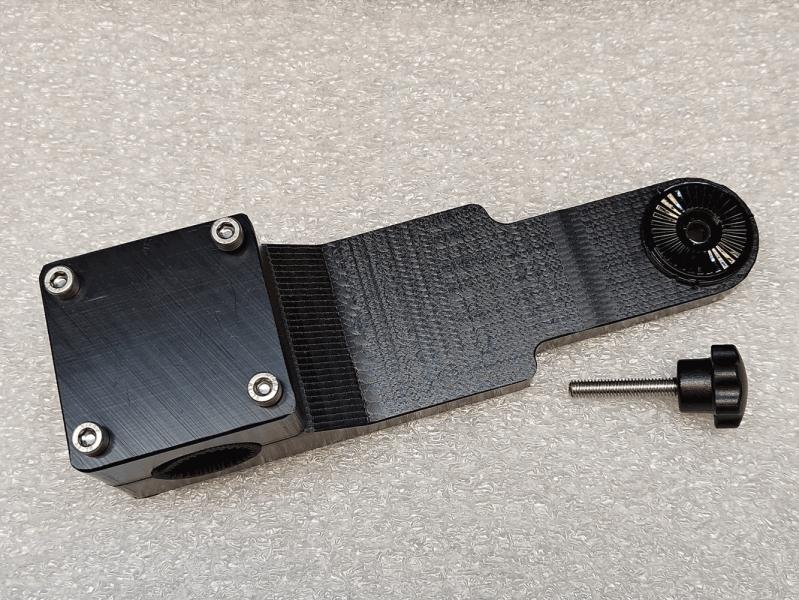

Transducer mount for the Ø 15-20mm pole
Transducer mount for the Ø 15-20mm pole
Transducer mount for the Ø 15-20mm poleTransducer mount for the Ø 15-20mm poleTransducer mount for the Ø 15-20mm poleTransducer mount for the Ø 15-20mm poleTransducer mount for the Ø 15-20mm pole

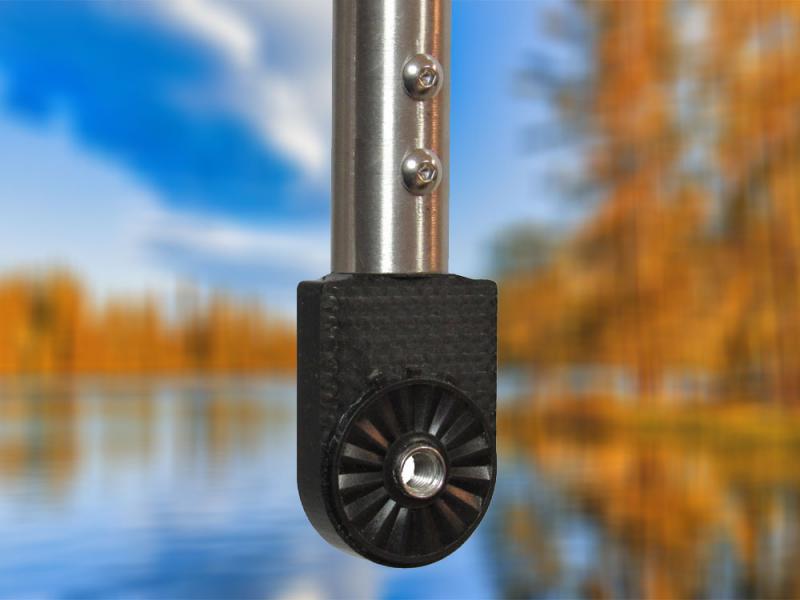

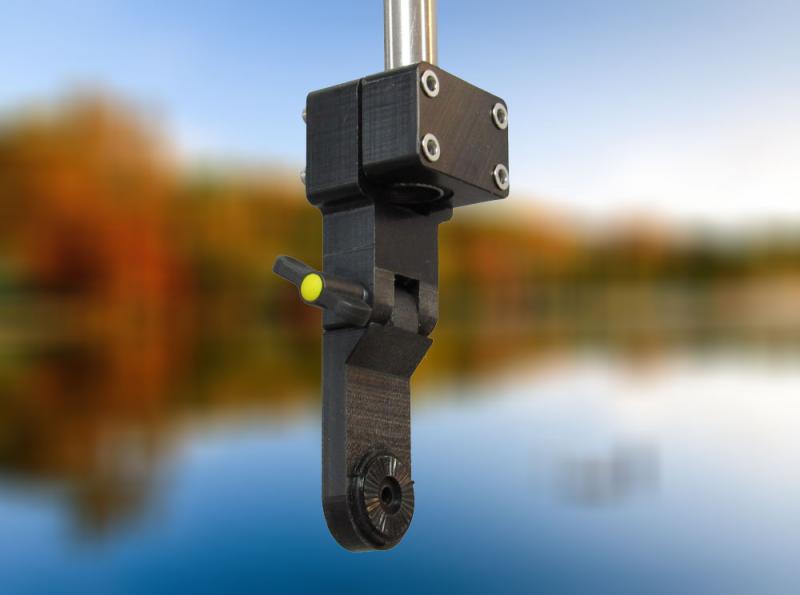

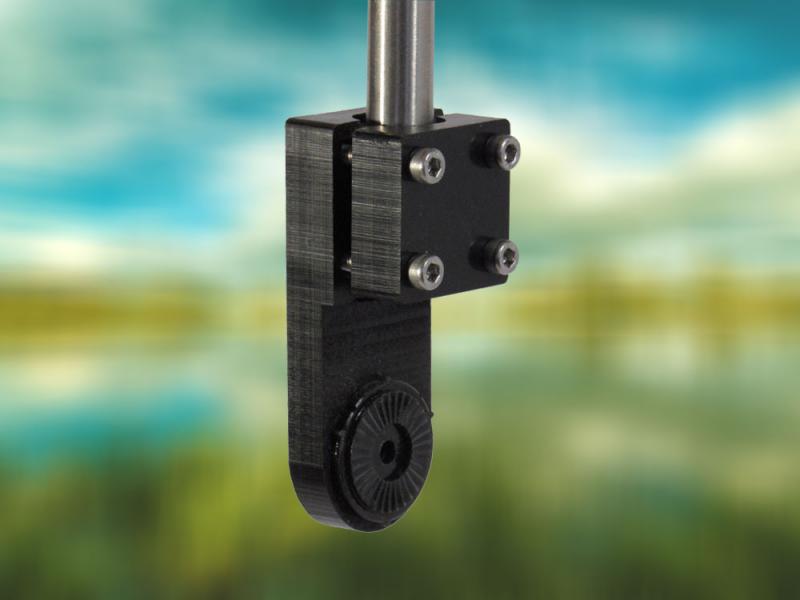

0° (zero degree) transducer mounts for the Ø15-20mm pole.

Supported Live Sonar Systems:
*  Garmin Panoptix LiveScope LVS32 / LVS34
*  Lowrance ActiveTarget / ActiveTarget 2

Regardless of the Live Sonar system you are using, there are two ways of searching for fish:
*  The Downward view mode
*  The Forward view mode

Produced from blank plastic using CNC milling machine. NOT 3D PRINTED.

Price without VAT and discount 25 €

Plus delivery!

Terms and Conditions


Price: 30 €
Options:

Add to cart

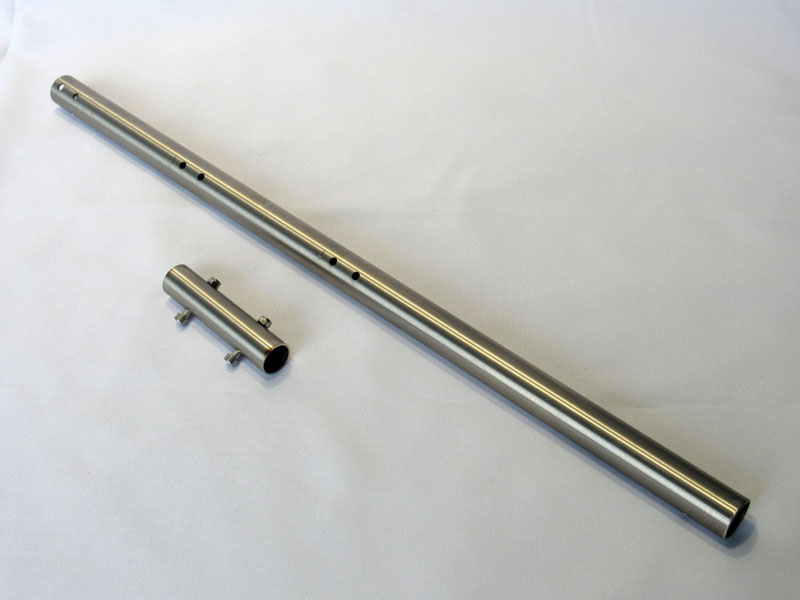

S-Pointer pole extension
S-Pointer pole extension
S-Pointer pole extensionS-Pointer pole extension

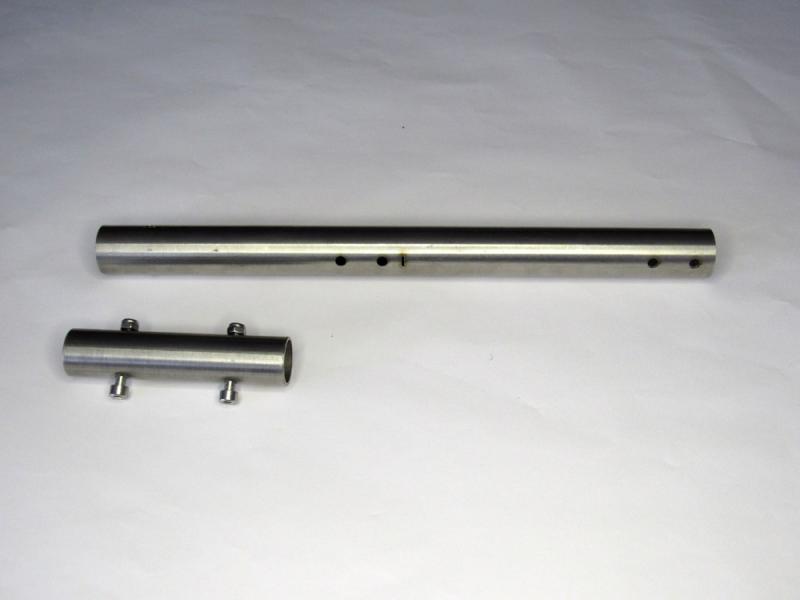

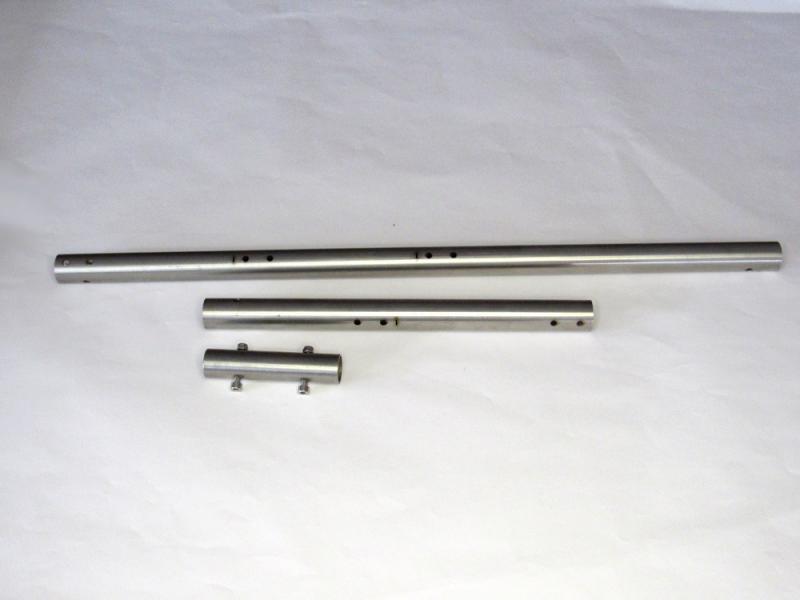

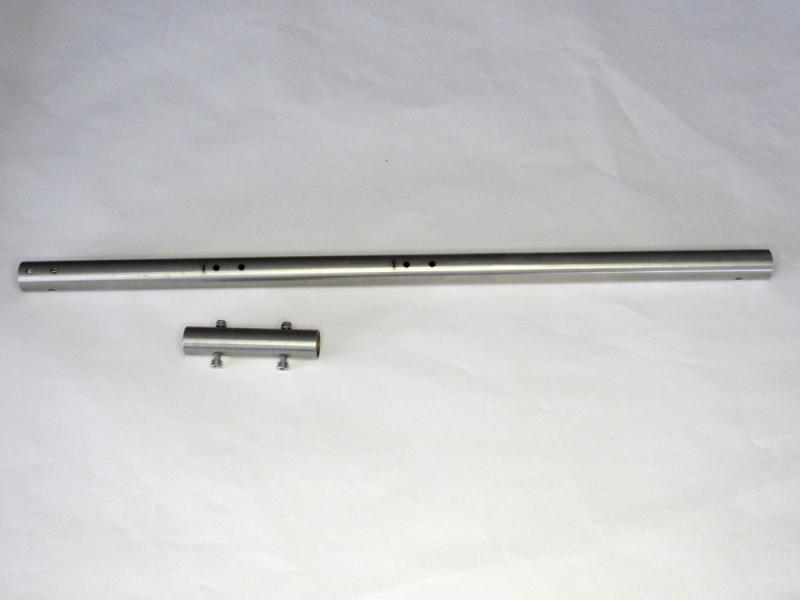

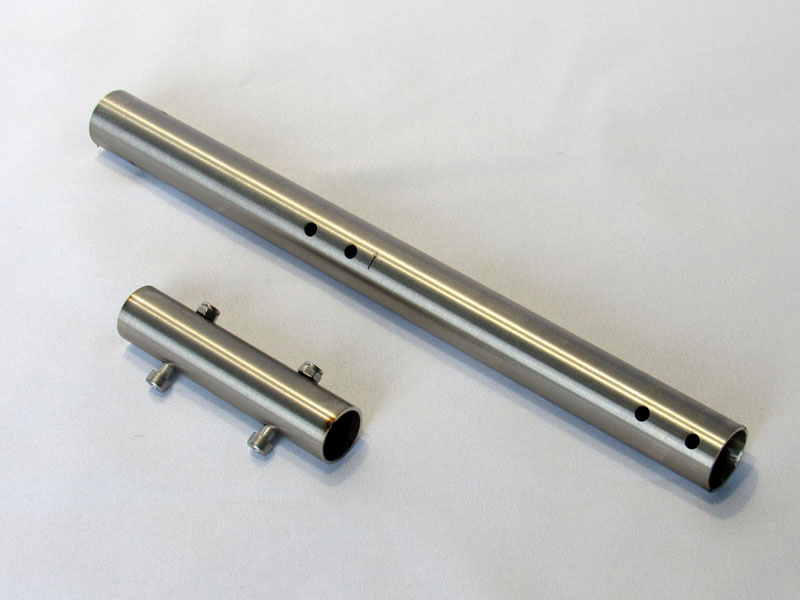

When you buy regular manual or motorized S-Pointer the pole's length down from top of the boat side is about 0,9m. Here is an extensions for rotator pole. Both has possibility to be cutten of by 15 cm.

Made from Ø25mm stainless steel tube.

Price without VAT and discount 10/20 €

Plus delivery!

Terms and Conditions


Price: 12 €
Options:

Add to cart

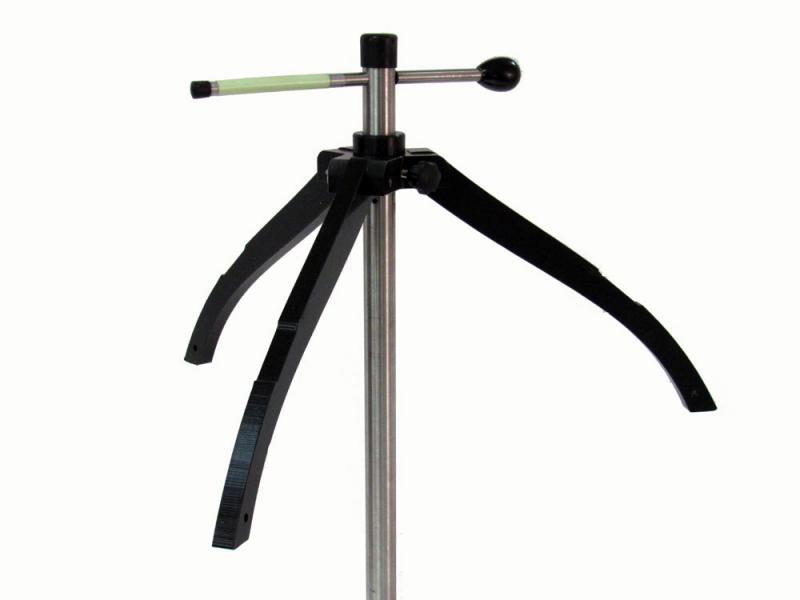

Accessories for S-Pointer
Accessories for S-Pointer
Accessories for S-PointerAccessories for S-PointerAccessories for S-PointerAccessories for S-PointerAccessories for S-Pointer

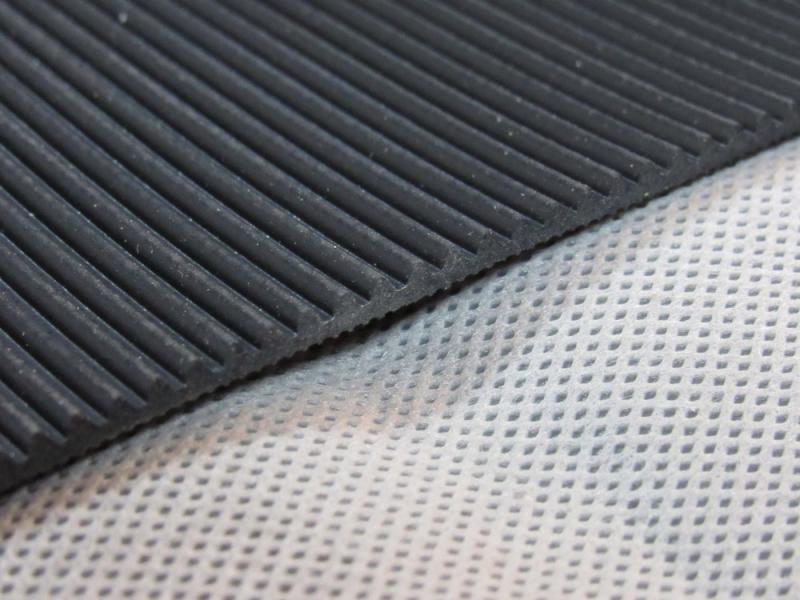

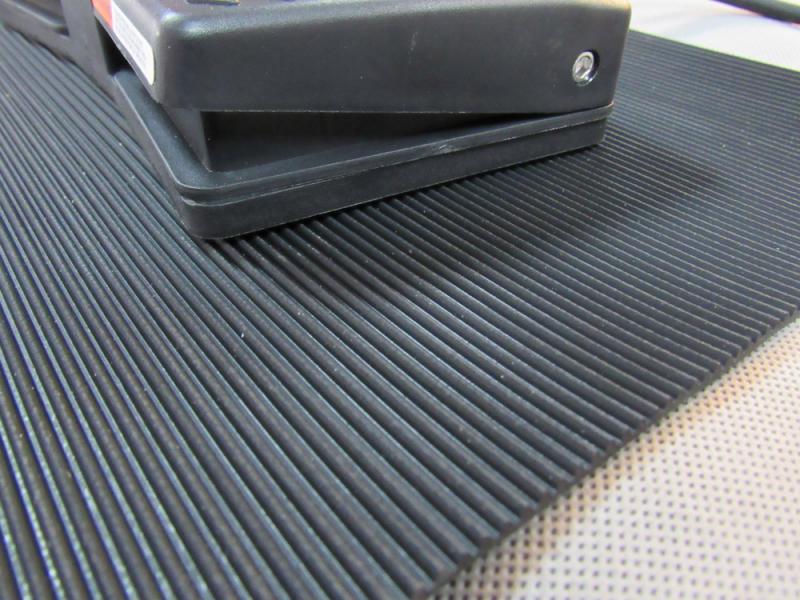

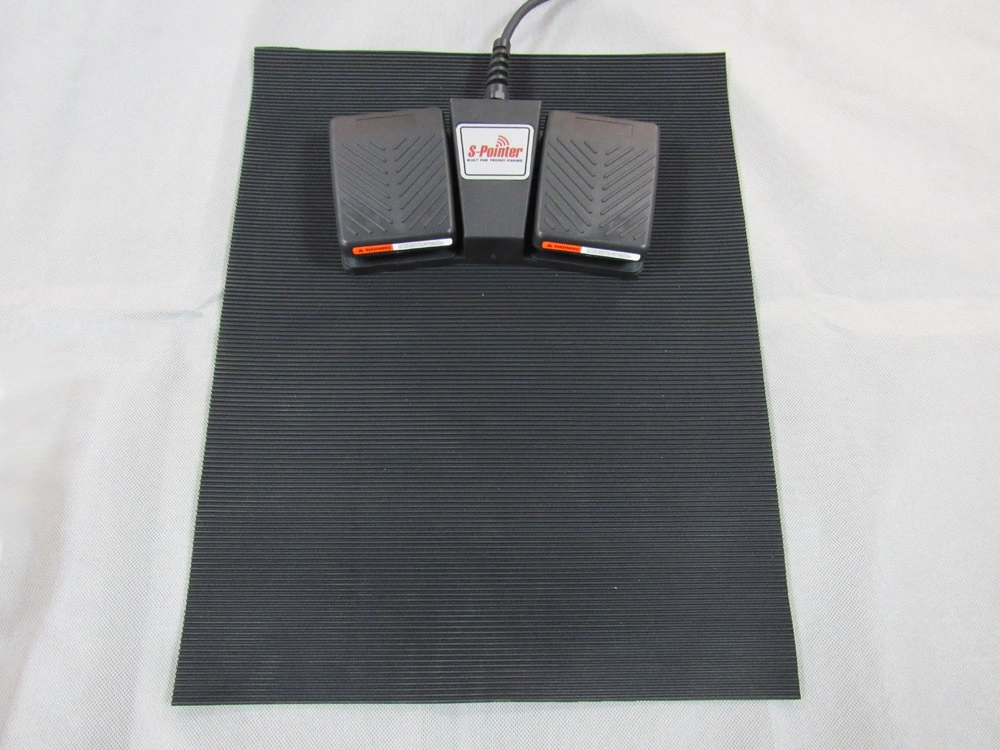

Anti slip pad for pedal is made from rubber and size of it is 30x40 cm.

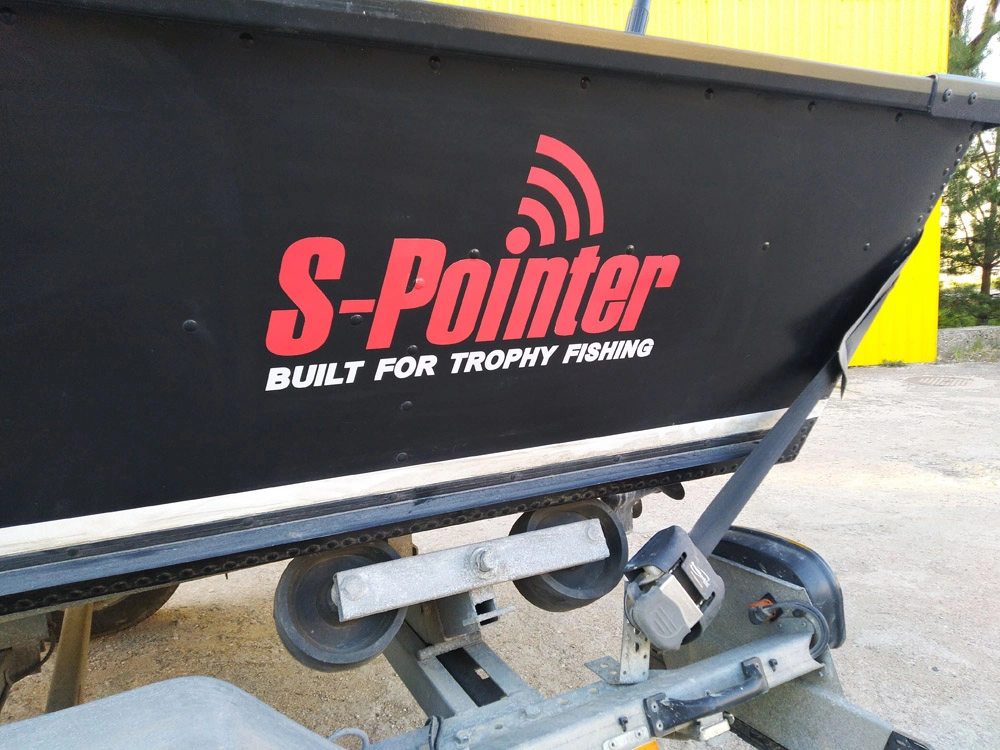

"S-Pointer" logo boat sticker is made from red and white collor light reflective film. Size of sticker is 45x25 cm.


Price without VAT and discount 12/16 €

Plus delivery!

Terms and Conditions


Price: 15 €
Options:

Add to cart

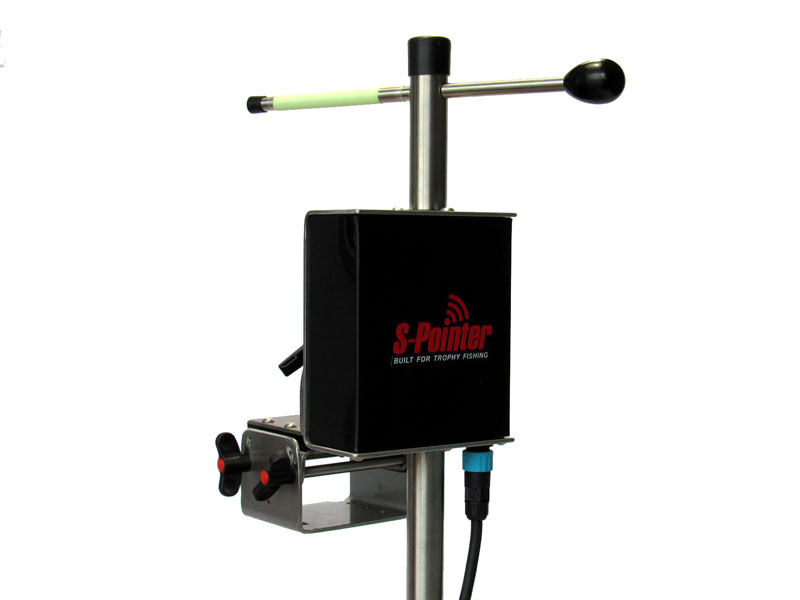

Automated - manual live sonar mount
Automated - manual live sonar mount
Automated - manual live sonar mountAutomated - manual live sonar mountAutomated - manual live sonar mountAutomated - manual live sonar mount
UNDER DEVELOPMENT
Final features list might be adjusted.

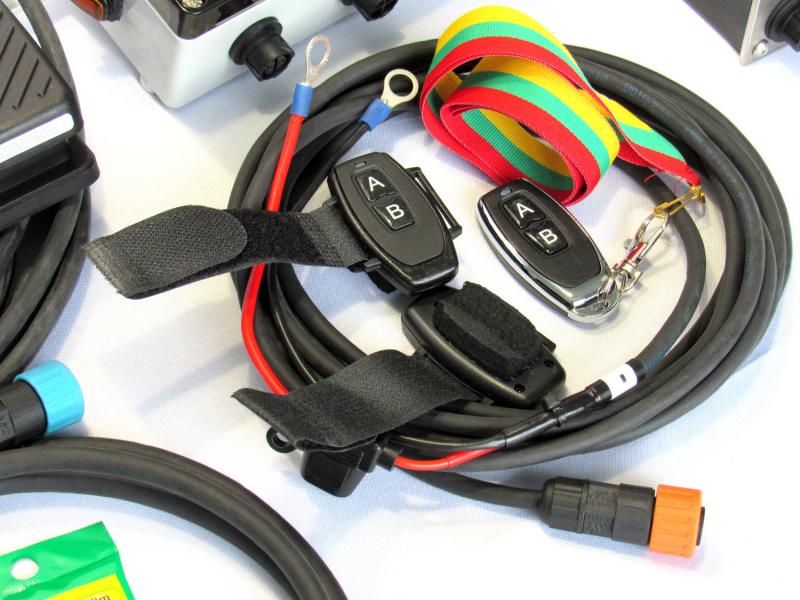

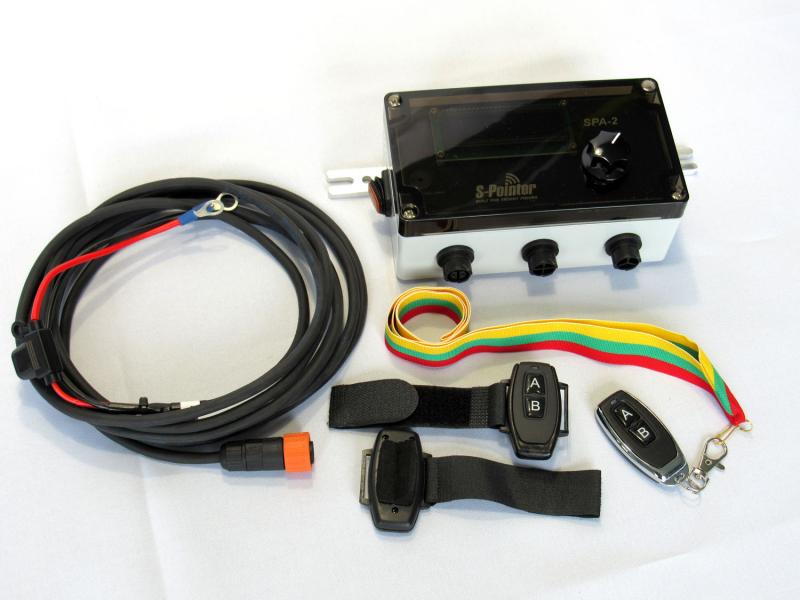

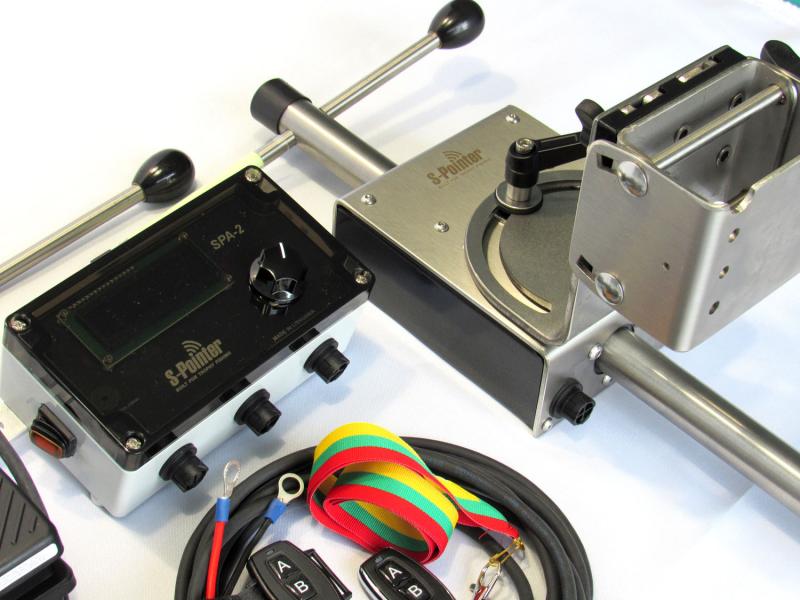

Automated "S-Pointer" set includes:
*  Tilt compensator
*  Motorized rotator with Ø25mm pole

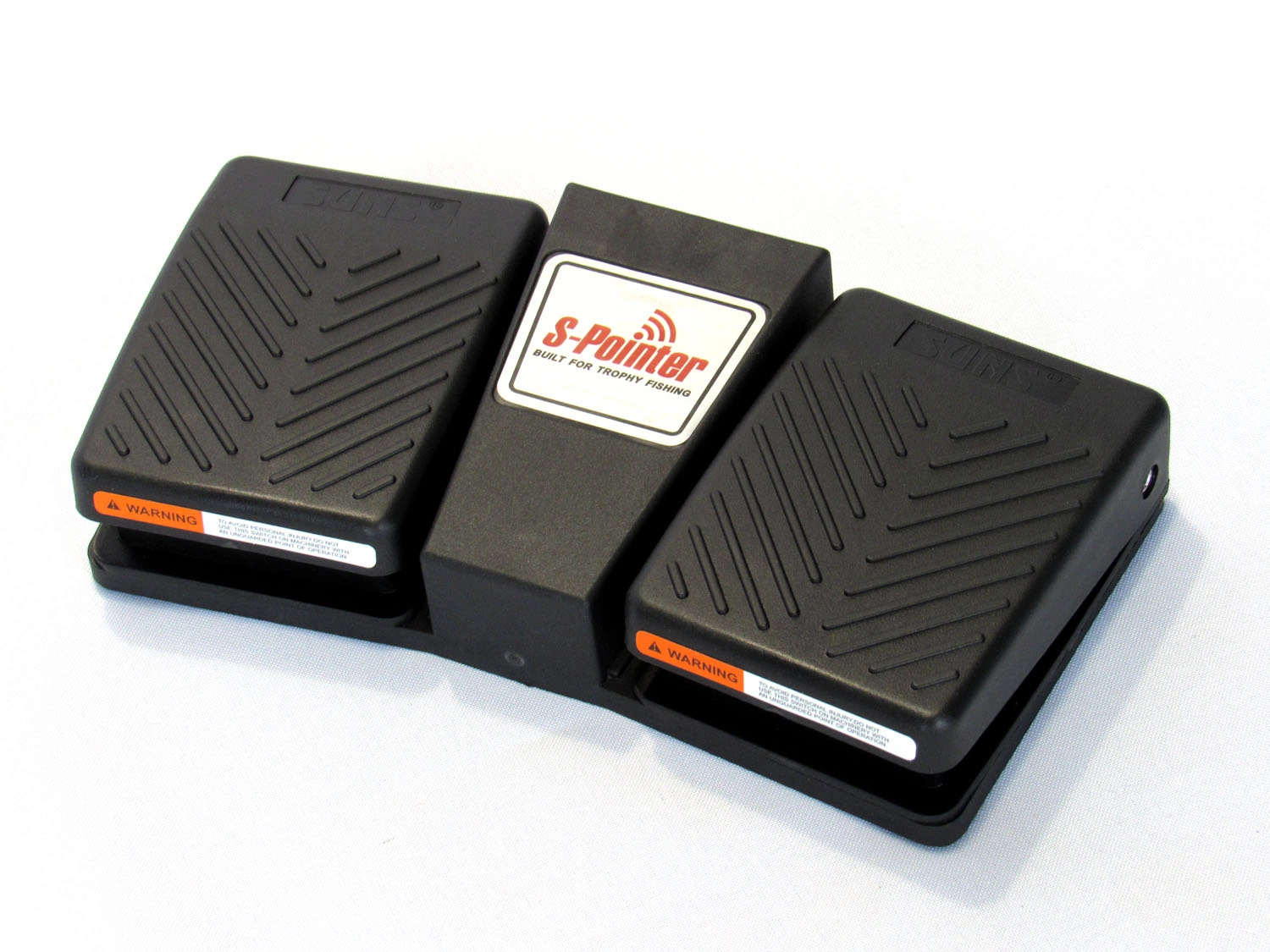

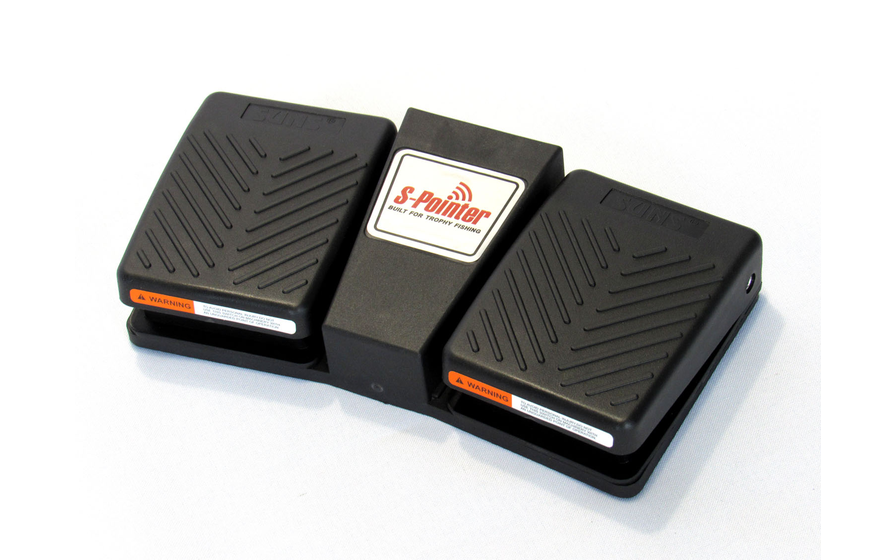

*  Wireless foot pedal

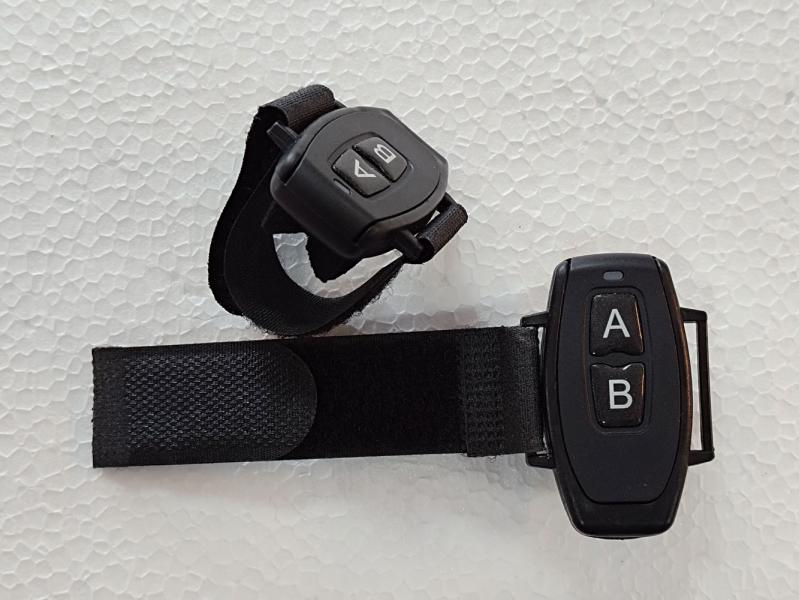

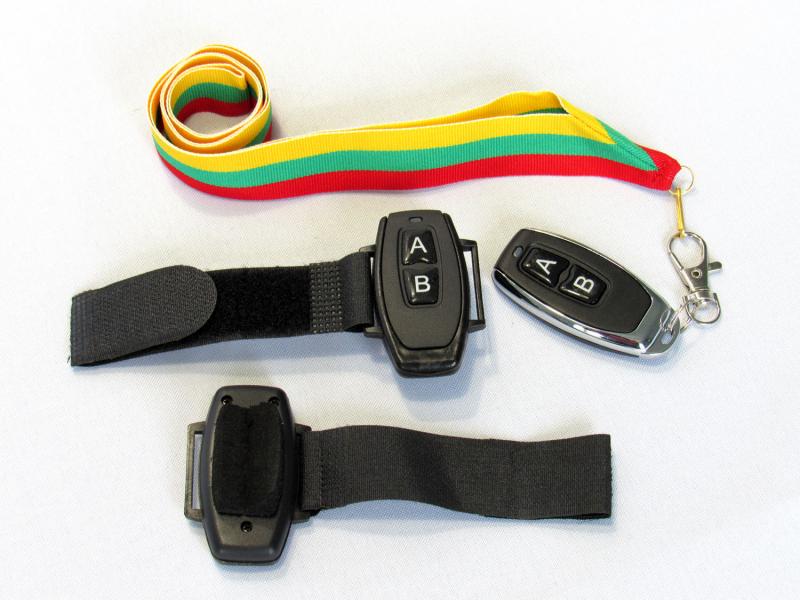

*  Two wireless remote controls to fix on fishing rod

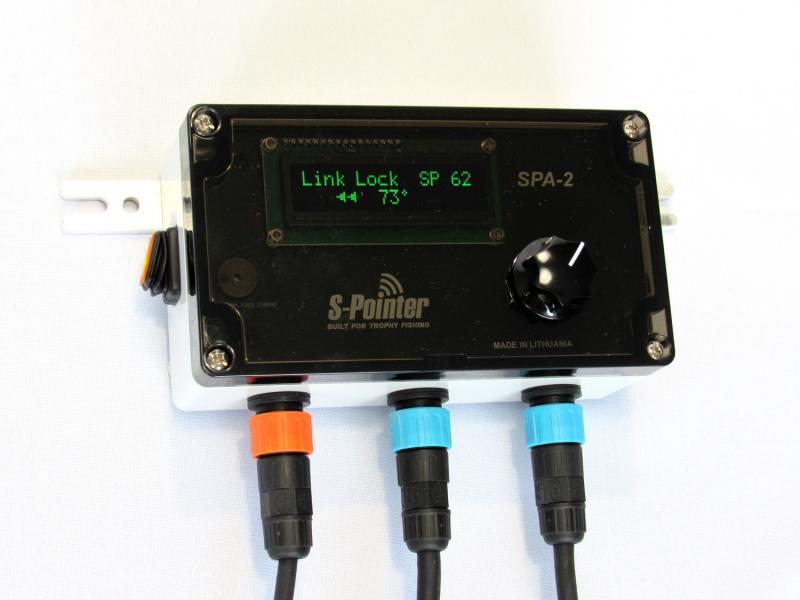

*  Control block
0° (zero degree) transducer mount if you will choose Garmin or Lowrance transducer
*  Transducer wire protection

Supported Live Sonar Systems:
*  Garmin Panoptix LiveScope LVS32 / LVS34
*  Lowrance ActiveTarget / ActiveTarget 2
*  Humminbird Mega Live - use own original sonar mount

Regardless of Live Sonar system you are using, there are two ways of searching for fish:
*  The Downward view mode
*  The Forward view mode

Automated "S-Pointer" benefits and features:
*  Has automated search (Autoscan) function. Search amplitude 160° or 360°

*  Has link lock (Target Lock) function
*  Has rotation speed control

*  Can be used like motorized or manual rotator

Made from stainless steel and plastic. Rotator head dimensions 130x60x150mm and weight is ~3 kg.

Pole's length from the top of the boat side downward is ~0,9m. If you need a longer pole you can order an 0,3m or 0,6m extension.

Price without VAT and discount ??? €

Plus delivery!

Terms and Conditions


Price:
